Kelford

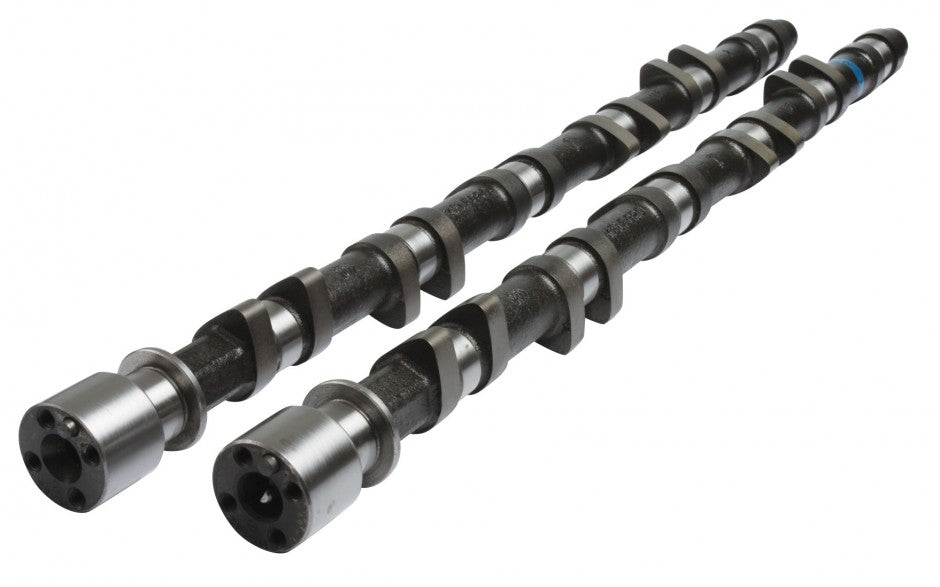

182-SF RB26 Performance Cams (288&280/292), R32/R33
182-SF RB26 Performance Cams (288&280/292), R32/R33
Regular price
$863.55
Regular price
$909.00
Sale price
$863.55
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
288/280 Degree split lobe cams to suit high RPM, high HP engines, especially good with E85 fuel.
SPECIFICATIONS
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB26DETT | 182-SF | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.35mm | Exhaust: | 11.35mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.10mm | Exhaust: | 11.10mm | |||
| Advertised Duration @ | 0.35mm | Intake: | 288 | Exhaust: | 292 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 248 | Exhaust: | 254 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 67 BBDC | ||
| IVC: | 56 ABDC | EVC: | 7 ATDC | ||||
| Suggested Centre Lines: | Intake: | 112 | Exhaust: | 120 | |||
| VALVE | Lift @ TDC | Intake: | 2.29mm | Exhaust: | 1.64 | ||
