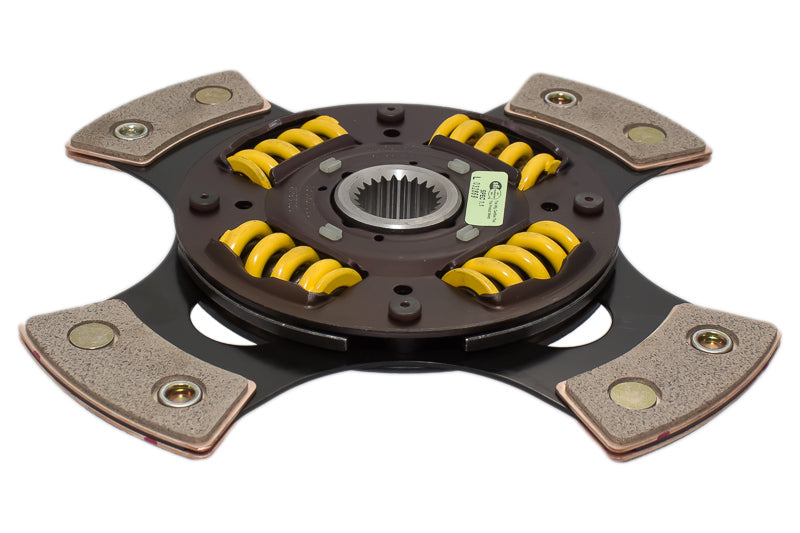

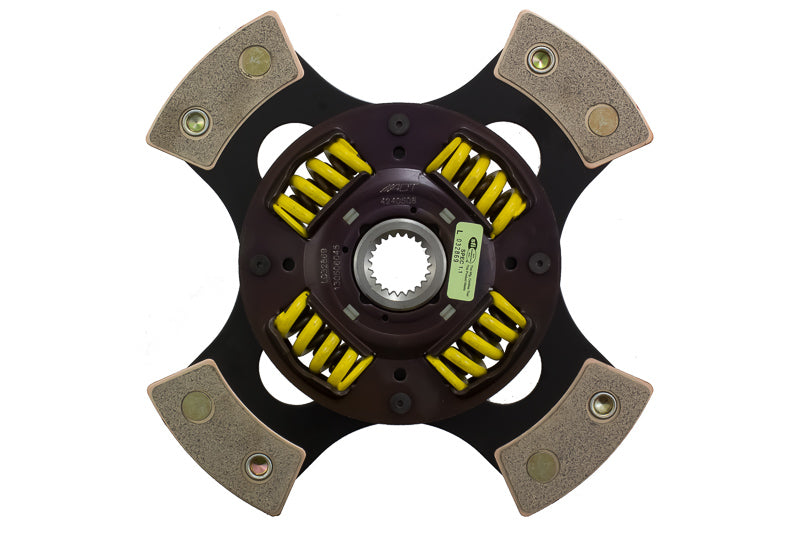

4 Pad Sprung Race Disc, FD3S

"Excellence in Performance", backed by the best one-year warranty in the industry!

4240508 is a 4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.

NOTES

• Aggressive engagement, quick shifts, OE to mild gear rattle
• Premium ceramic friction materials provide moderate wear rates and high heat tolerance
• Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability
• Recommended for race use only
• High burst strength and holds 28% more torque than typical organic materials

SPECIFICATIONS

• Diameter: 9.4 IN
• Diameter: 240 MM
• Spline Quantity: 23
• Disc Material: Ceramic
• Splined Bore Diameter: 1 IN
• California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
• Product Weight (lbs.): 3.2
• SFI: 1.1
• Title: ACT 4 Pad Sprung Race Disc
