Actuator Upgrade Kit (GTIII Sports Turbine Kits), R32-R34

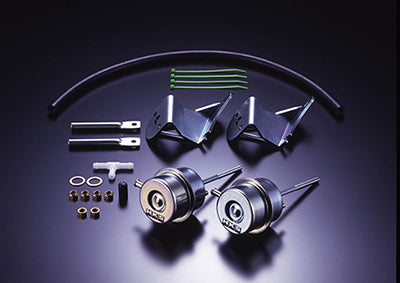

【ACTUATOR UPGRADE KIT】

By just installing the kit to normal turbine, you can get more power, and it's very cost-effective.

• Easy power up
  You can get more power and higher boost just by changing the normal turbine installed actuator.
• Cost-effective
  You can use existing turbine for the first step of the tune-up.
• Adjustable boost pressure
  You can adjust boost pressure for your needs with rod that is installed to the actuator by expansion and contraction.

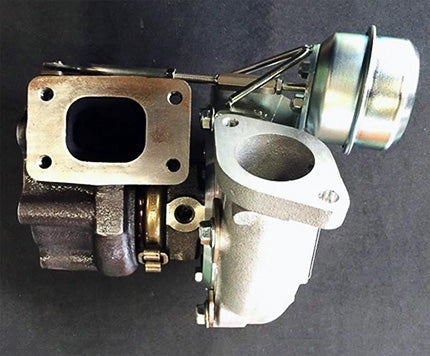

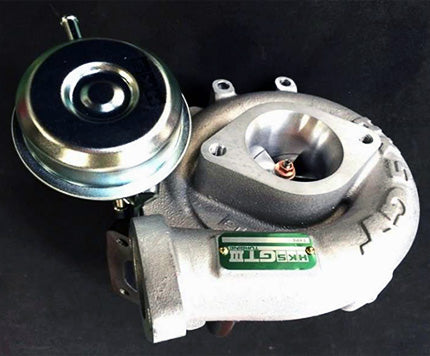

RB26 GTIII Sports Turbine Kit

This actuator is used in RB26 GTIII sports turbine kit with boost over 1.0kgf/cm²(98.1kPa).
It is for users who desire high power.

【Features】

More stable operation with original large type diaphragm & spring.
Quick boost response and stabilized feeling at high RPM.
※This actuator is equipped in GTⅢ-RS turbine kit(11004-AN012) from May, 2017

【Test Vehicle】 Skyline GT-R/BNR34

• GTIII-RS Sport Turbine Kit
• RB26 2.8L KIT STEP2
• V CAM System STEP2
• Large Capacity Injectors
• Performance Fuel Pump
• R-Type Intercooler
• Super Turbo Muffler
• Metal Catalyzer
• F-CON V Pro Ver3.4
• EVC 6-IR
• Actuator Set Length⇒Tighten standard with 6 rotations and enhanced with 2 rotations

【Precautions】

※modification is required in some vehicles.
※The torque and engine output may vary depending on the measuring instrument and/or individual difference of vehicles.

Remarks
For GTIII Sports Turbine Kit. Fuel Resetting is required.
