Cam Pulley (Adjustable Cam Gear), R32-R34

【Cam Pulley】

Cam feeling correction for a variety of engine and use.

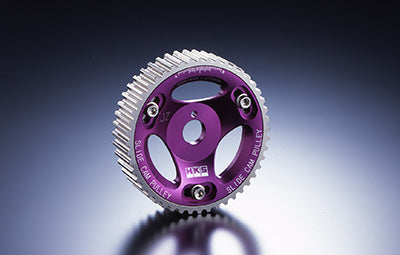

SLIDE CAM-PULLEY

Reviewing the material and design has allowed for a stronger and lighter unit.



Highly durable and lightweight pulley

Using a super light duralumin (A2014) as its main material that the strength has increased by 50% and hardness by 30% (over previous version). This change in material has allowed the design change that has also allowed the unit to be substantially lighter (10% less load on RB engines) and increasing the engine reliability and power.

Nickel plating increases anti-frictional properties

Gear section is nickel plated for surface hardness increase (Hv: 350 → 500 (compared to older version)) to withstand strengthened timing belts and any foreign objects that may get caught between the gear and belt.

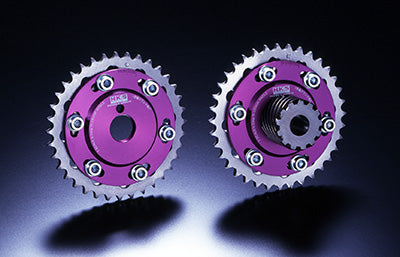

CAM-SPROCKET

Accurate valve timing control (angle adjustable)

RB26DETT, RB25DE(T), RB20DE(T)	AL Slide	22004-AN001			For IN. Not compatible with NVCS camshaft.
RB26DETT, RB25DE(T), RB20DE(T)	AL Slide	22004-AN002			For EX
