Tomei

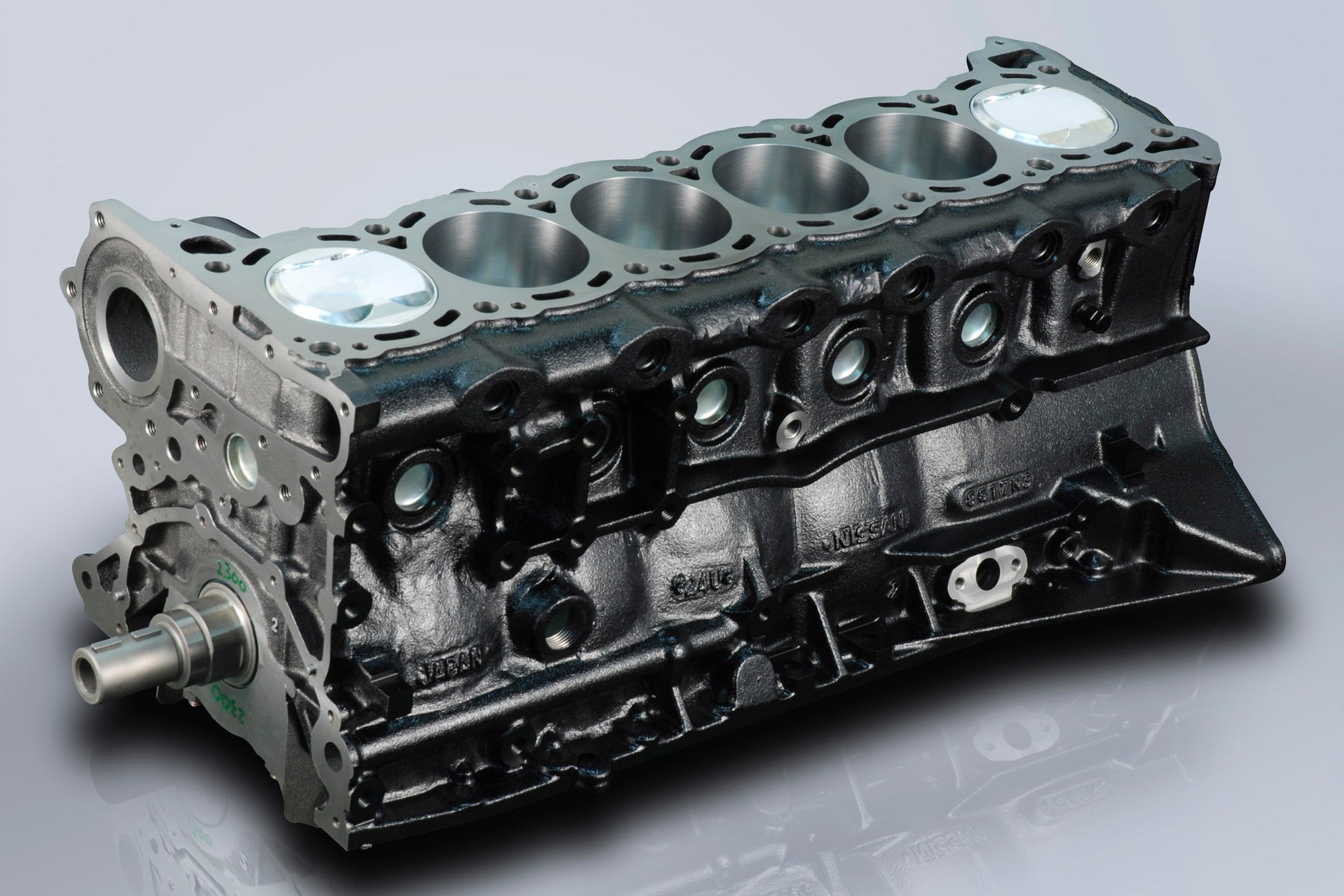

Short Block - RB28, R32-R34

Short Block - RB28, R32-R34

Regular price $13,500.00
Regular price $15,000.00 Sale price $13,500.00
Sale Sold out
Shipping calculated at checkout.
Type

Pistons, crank and connecting rods are pre-assembled for the best tuning block.

NOTE: This is a special order item, please contact us at sales@legendofr.com prior to purchase.

PRODUCT INFO

APPLICATION TYPE PART P/N NOTES
BNR32
BCNR33
BNR34
WGNC34
RB28 STD BLOCK CPB-RB28-S 211011
N1 BLOCK CPB-RB28-N 211012
RB26 STD BLOCK CPB-RB26-S 211021
N1 BLOCK CPB-RB26-N 211022

FEATURE / SPEC

TYPE CPB-RB26-S CPB-RB26-N CPB-RB28-S CPB-RB28-N
P/N 211021 211022 211011 211012
BASE ENGINE
RB26DETT
BORE*STROKE Φ86.5×73.7㎜ Φ86.5×77.7㎜
DISPLACEMENT 2597cc 2738cc
PISTON TOMEI FORGED PISTON Φ86.5 (VALVE RECESSED)
CONNECTING ROD TOMEI FORGED H-BEAM 121.5mm TOMEI FORGED H-BEAM 119.5mm
CRANKSHAFT HERITAGE TOMEI FORGED 8 COUNTERED
MAIN BEARING
TOMEI COMPETITION
CONROD BEARING
TOMEI COMPETITION
MAIN BOLTS
TOMEI STUDS TYPE
CYLINDER BLOCK HERITAGE STD TYPE HERITAGE N1 TYPE HERITAGE STD TYPE HERITAGE N1 TYPE


RB26
We want to keep the original feeling of the RB26.
This model is designed for users who wish to enjoy their beloved machine for a long time and pursue its performance.

RB28
Dramatic changes are brought about by the increased displacement of 200cc.
Experience the super response that responds to the accelerator pedal with agility, and the acceleration that extends forever.


1:DECK HEIGHT & SURFACE CORRECTION

When the blocks surface is deformed which at times happens even with new blocks from factory it will need to be corrected.The surface is then milled and corrected within 0.1mm accuracy.
With the horizontal face corrected with a perfectly flat surface the meting face is improved which also improves sealing characteristics for maintaining the right combustion gas pressure.

2:DUMMY HEAD INSTALLATION

Boring the block with the dummy head attached greatly enhances the machining results so that during the boring process the block is not deformed more than 0.01mm.
This is another key factor in achieving the highest precision possible with each engine build.
The block is assembled with a dummy head ( of the same height as the stock head ), head gasket and crank caps to replicate the same condition as an assembled engine.

3:CYLINDER BORING

Boring with the dummy head helps improve the precision of each of the cylinder dimension with minimal distortion.
The results of boring the block with the dummy head attached are the best results for precision.

4:PLATEAU HONING

the small grooves made by the general honing is processed called the “cross hatch”style on the cylinder walls helps with holding oil on the cylinder wall surface for the best lubrication results for the pistons.
The general rough surface finish of the cylinder walls will usually cause unwanted friction.
The Plateau honing with the Cross Hatch layout will help smooth the surface more whilst still holding oil in the walls and greatly reducing fiction which greatly enhances the engines life and durability.

5:PISTON TO CYLINDER WALL CLEARANCE INSPECTION

The block is then left in the climate controlled room for a minimum of 24 hours to maintain a stable temperature at 20℃,this is the best temperature for checking and verifying piston clearance with tolerances kept within an acceptable range of ±5μ.

6:BLOCK BURR CHECK AND CLEANUP

To maintain precision and the cylinder block is checked for any signs of imperfection from any unwanted burr and or debris that was caused during casting at the OEM manufacturer.
This assures no unwanted matter will cause any harm during assembly and more importantly keeping the oil and waterlines completely clean to eliminate any troubles.

7:WASHING

Complete cleaning of the water & oil lines is meticulously done by hand manually with each and every block with every orifice and areas checked thoroughly, Then finished off with a high pressure hot wash in a specialized machine and finally completed with a high pressure air clean in every line, gaps and orifices.
This extensive 3 stage process is time consuming but an absolute must to completely eradicate any unwanted burr and foreign material from causing harm to the internals.

8:PISTON,CONNECTING RODS WEIGHT MEASUREMENTS AND ADJUSTMENTS

The TOMEI products have already been checked and balanced when we packed them in the beginning.
But we then re-check the weights again in various assembly stages when we assemble the short block.
After the conrod and piston is assembled together we then again re-check the combined weights again to make sure that the weight difference is within 0.1g from each other conrod and piston assembly.
This will yield the best response,added power,smoother operations and extending engine life and durability.

9:DYNAMIC BALANCING OF THE CRANKSHAFT

The dynamic balancing of the crankshaft helps improve response, extra power gains, significantly reduces unwanted vibrations which eases the stress on bearings to minimize rebuilds.
The crankshaft is also checked for any signs of bends in the crank and for any other faults and if found it will be corrected during this process.
Just another time intensive process that you will no longer have to worry about.

10:CRANKSHAFT & CONNECTING ROD BEARINGS

Each bearing clearance is carefully checked for guaranteeing that the right amount of oil film is maintained in the right areas for optimum lubrication of the crankshaft without causing any unwanted friction.
The thrust direction is also checked and this entire process is also performed in a climate controlled room with all parts and essential equipment maintained at a constant 20 ℃.

11:PISTON RINGS

The Piston ring is designed to provide the best sealing properties and clearance.
These piston rings are designed as a perfect circle for the protection of the cylinder walls and for maximum sealing properties.
This also aids with the best protection possible for the cylinder walls for extending the life of the engine.

12:PRECISION ASSEMBLY

Our precision assemblies are well known throughout the years and have been our trademark.
Our high standard of work has proven records on the street, track and evens to deliver results when needed most.
Our stringent levels of operations management in materials and processes reflect on our products performance throughout the years.
