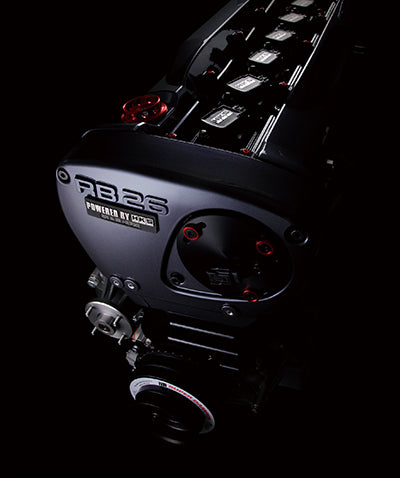

Complete Engine RB26DETT 2.8L High Response, R32-R34
Complete Engine RB26DETT 2.8L High Response, R32-R34
Regular price
$57,000.00
Regular price
Sale price
$57,000.00
Unit price
/
per
【COMPLETE ENGINE for RB26DETT 2.8L HIGH RESPONSE】
Build by experienced HKS staff using N1 block and specially prepared parts, including bespoke crankshaft sensor and coils for ultimate engine response
- Lightweight and durable parts such as piston, conrods and crankshaft for dramatically improved response
- Titanium Retainer, Strengthened valve spring, High lift camshaft and strengthened stem seals, all were upgraded to sustain high power in high RPM range.

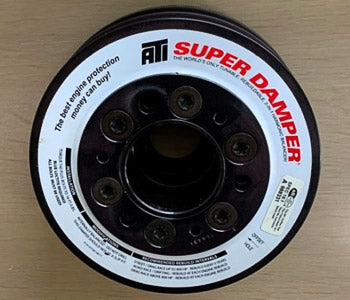

- Crank damper is installed for improved torsional stability

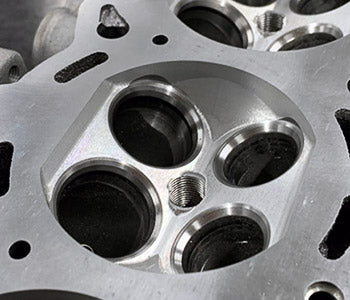

- CNC machined combustion chamber to decrease knocking
- High-Volume Oil Pump to ensure lubrication of the engine on a whole range of RPM
- Grommet Head Gasket and Strengthened Stud Bolts for improved sealing

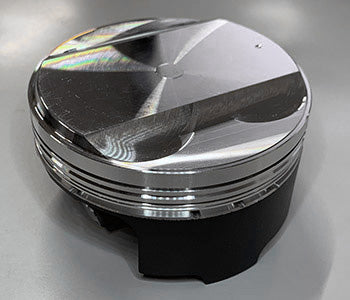

- Light weight A2618 Aluminum Alloy Billet Piston with high temperature strength

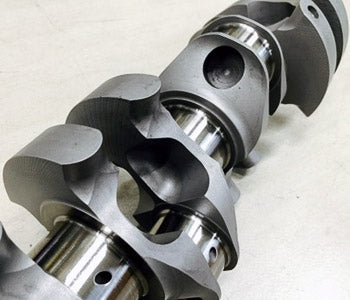

- Specially developed crankshaft with minimized to the limits counterweights.
- Enlarged to Φ22 lightweight pin to withstand high combustion pressure

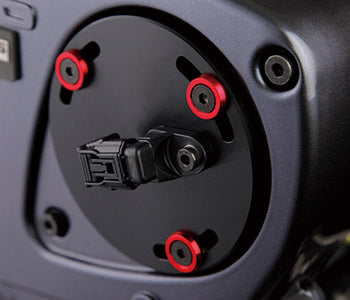

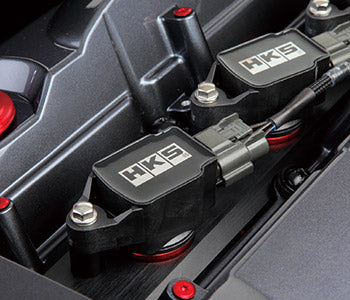

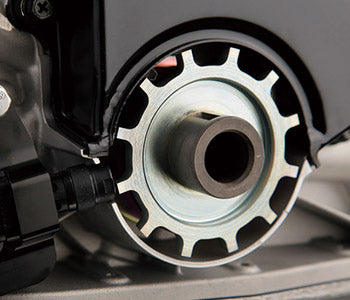

- To improve engine response the package includes a bespoke crank angle sensor and ignition coils.
* HKS recommends using HKS Racing Pro 10W50 engine oil.
Specifications
HKS 2.8L KIT | Stock | |
---|---|---|
Bore | 87.0mm | 86.0mm |
Stroke | 77.7mm | 73.7mm |
Compression (t=1.2) | 8.6 | - |
Max RPM | 9,000rpm | 7,600rpm |
Displacement | 2,771cc | 2,568cc |
COMPLETE ENGINE RB26 2.8L HIGH RESPONSE
Camshaft STEP2 | HKS IN:264°/ LIFT 10mm |
---|---|
HKS EX:264°/ LIFT 10mm | |
Cam Pulley | HKS SLIDE CAM-PULLEY |
Timing Belt | HKS Fine Tune Timing Belt |

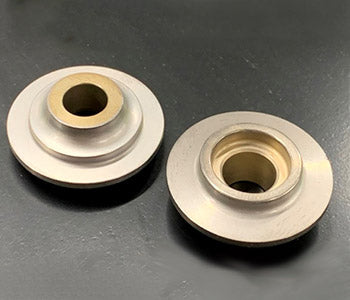

Spring Retainer | HKS Titanium (Weight:9.2g) |
Valve Spring | HKS enhanced product |
Stem Seal | HKS enhanced product |
Valve | Valve seat grinding |
Port | Step removal around the seat area |
Combustion Chamber | CNC machined combustion chamber (with retained squish area) |
Head Gasket | HKS Grommet type gasket (t=1.2) |
Head Bolt | HKS reinforced bolts |
Block (24U) Details | Waterhole machining |
Head bolt hole chamfering | |
Boring | |
Oil Pump | HKS enhanced product |

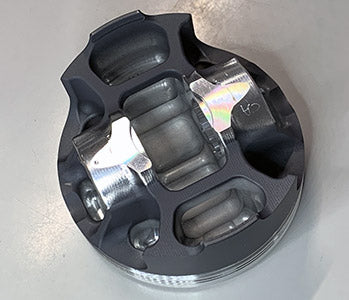

Piston | HKS Billet Truss Construction |

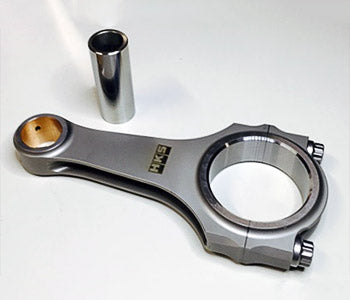

Connecting Rod | HKS Billet H-beam |
Crankshaft | HKS Billet |
Main Bearing Bolt | APR Reinforced Stud bolts |
Main Bearing | ACL |
Conrod Bearing | ACL |
Water Jacket | Head modifications for improved water flow |
Other included components | Dedicated crank angle sensor, special ignition coil, and NGK racing spark plug #9. |
