Complete Engine RB26DETT 2.8L Step2 V-Cam, R32-R34
Complete Engine RB26DETT 2.8L Step2 V-Cam, R32-R34
Regular price
$44,000.00
Regular price
Sale price
$44,000.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
![COMPLETE ENGINE RB26DETT 2.8L STEP2 V-CAM](https://www.hks-power.co.jp/en/product/engine/complete_engine/images/rb26_s2_vcam_title.png)

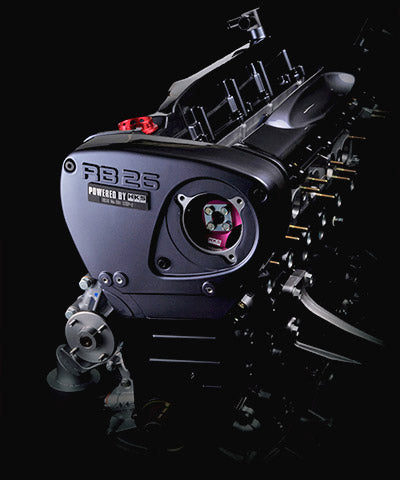

【COMPLETE ENGINE RB26DETT 2.8L STEP2 V-CAM】
COMPLETE ENGINE that having “V-CAM STEP Pro” compatible with a large single turbine.
- Proven 2.8L STEP 2 kit is assembled by an experienced HKS engineer.
- Combustion chamber processed by CNC machining to reduce knocking.
- Employ a large capacity oil pump to ensure the stable lubrication of the engine on a whole RPM range.
- Selected the most optimal main bearing and connecting rod bearing through many strict tests.
- Grommet head gasket and strengthened stud bolt for improved sealing.
- High angle camshafts for improved high end performance.
- Reinforced valve spring and titanium retainer to suppress surging at high-rpm.
- Strengthen valve stem seal for improved sealing performance even at high-rpm and high temperatures.
- This product purposely employs V-CAM STEP Pro to the existing complete engine RB26DETT 2.8L STEP2 because of the consideration of the valve lift.
- Employing V-CAM STEP Pro brings out more engine performance. STEP Pro came from the name of the billet CAM.
* HKS recommends using “HKS Racing Pro 10W50” engine oil.
Specifications
HKS 2.8L(V-CAM) | Stock | |
---|---|---|
Bore | 87.0mm | 86.0mm |
Stroke | 77.7mm | 73.7mm |
Compression Ratio (t=1.2) | 8.6 | - |
Maximum RPM | 8,800rpm | 7,600rpm |
Displacement | 2,771cc | 2,568cc |
COMPLETE ENGINE RB26 2.8L STEP2 V-CAM

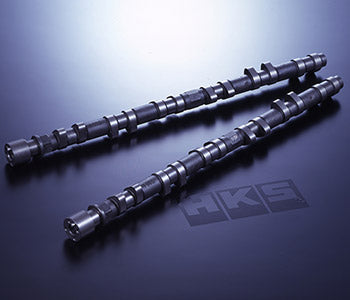

Camshaft | IN: HKS V-CAM STEP Pro 264° / LIFT 10mm EX: HKS STEP 2 272° / LIFT 10mm |
---|---|

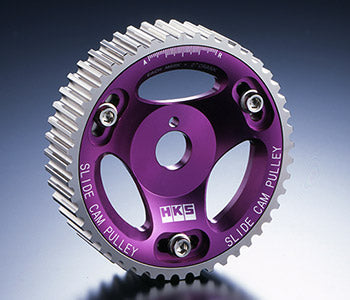

Cam-pulley | HKS slide cam-pulley Code No. 22004-AN001 (IN) Code No. 22004-AN002 (EX) |
Timing Belt | HKS fine tune timing belt Sport Code No. 24999-AN002 |

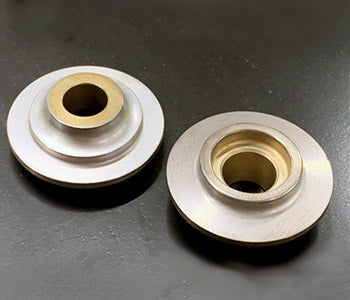

Spring Retainer | Titanium made HKS spring retainer |
Valve Spring | HKS reinforced valve spring Code No. 22001-AN001 |
Stem Seal | HKS reinforced stem seal Code No. 22999-AN004 |
Valve | Sheet sliding |
Port | Step removal around the seat area |

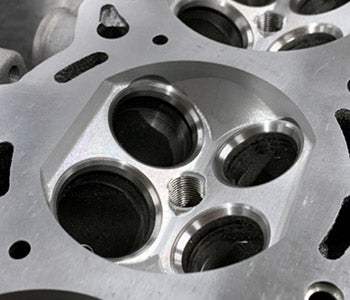

Combustion Chamber | CNC machined (with retained Squish area) |
Head Gasket | HKS Grommet type gasket (t=1.2) Code No. 23009-AN008 |
Head Bolt | HKS reinforced bolts |
Block (24U) Processing Details |
Cooling water hole Hole side chamfering for head bolt Boring |

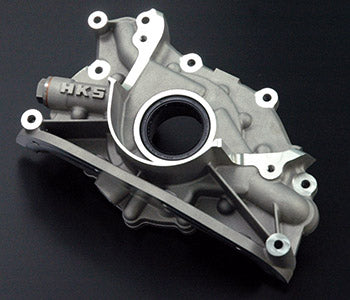

Oil Pump | HKS reinforced oil pump Code No. 15003-AN001 |

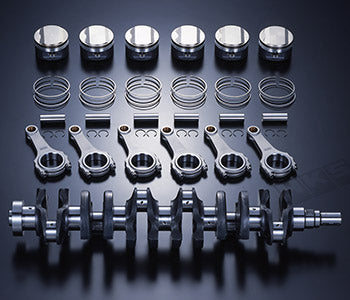

Piston | HKS forged piston kit Code No. 21003-AN003 |
Connecting Rod | HKS H-beam connecting rod Code No. 2304-RN006 |
Crankshaft | HKS forged crankshaft Code No. 23006-AN003 |
Main Bearing | ACL bearing company made |
Connecting Rod Bearing | ACL bearing company made |
Covers | Baking finish |
