Fuel Delivery System, R32 GT-R

INSTALLATION INSTRUCTIONS

Fuel Hanger
Fuel Plumbing
Fuel Rail
Pulse Damper
Regulator

---

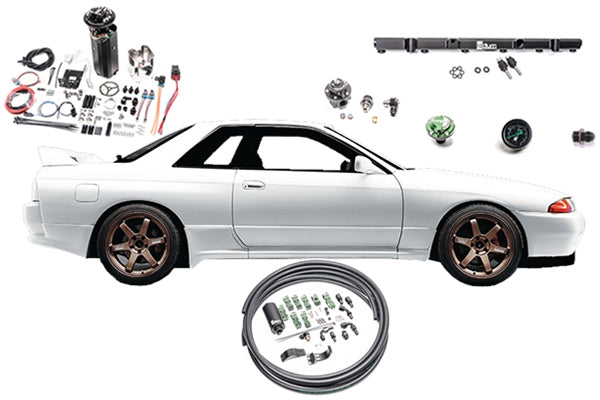

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the Nissan R32 Skyline GT-R.

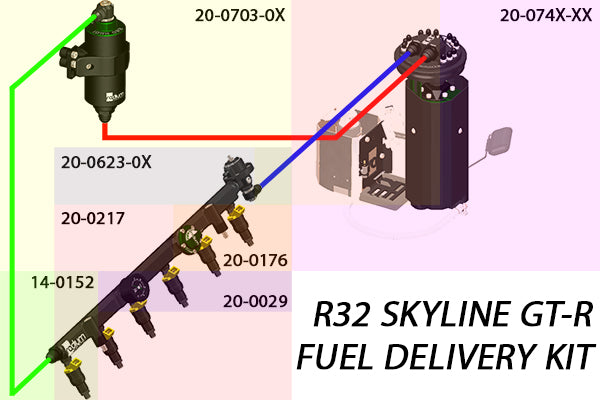

The in-tank fuel hanger surge tank replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-074X-0X fuel hanger can be found HERE.

The fuel lines, a high flow fuel filter, AN fittings, and undercarriage hard line retainers replace all OEM components. More details on the 20-0703-0X fuel hanger plumbing kits can be found HERE.

Fuel enters the RB26DETT engine through a 8AN fitting on the inlet of a high flow RB26DETT fuel rail. More details on the 20-0217 fuel rail can be found HERE. NOTE: Fuel Injectors are required.

Unwanted pressure spikes are controlled through a fuel pulse damper. More details on the 20-0176 FPD-R can be found HERE.

The included FPR regulates fuel pressure with boost pressure at a 1:1 ratio. More details on the 20-0623-0X DMR can be found HERE.

The DMR is monitored and adjusted using a 0-100psi gauge. More details regarding the 20-0029 gauge can be found HERE.

---

COMPATIBLE FUEL INJECTORS, FUEL PUMP(S), AND ELECTRICAL (WIRING, RELAY(S), FUSES(S), ETC.) ARE ALL THAT IS REQUIRED.



---

HOW TO ORDER:
Step 1: Select a fuel hanger pump configuration based on the vehicle requirements. Fuel pumps must be ordered separately. For more information on the pumps offered and supporting power, see THIS PAGE.
Step 2: Select the fuel filter element type in the next option list. For more information on the filter elements, see THIS PAGE.
Step 3: After all selections are made, add item to cart and proceed to checkout.
