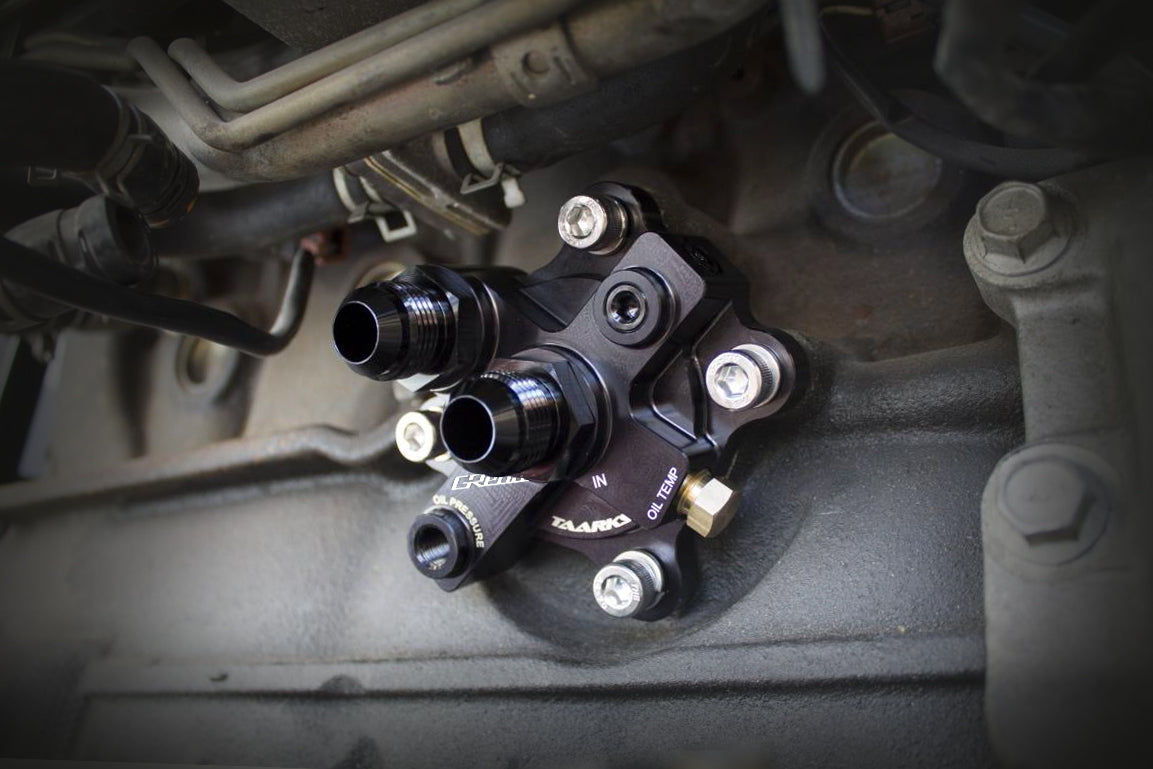

GReddy x Taarks RB26 Bolt-on Oil Block Adapter Kit

Designed specifically for Nissan RB engines.

This is a direct replacement for the standard OEM RB engine oil filter block, this allows you to run a low-profile oil filter re-locator and/or oil cooler, with -10AN lines, while eliminating the factory oil filter block with coolant.
(*use instead of GReddy Type F or B engine oil filter relocation block adapter)

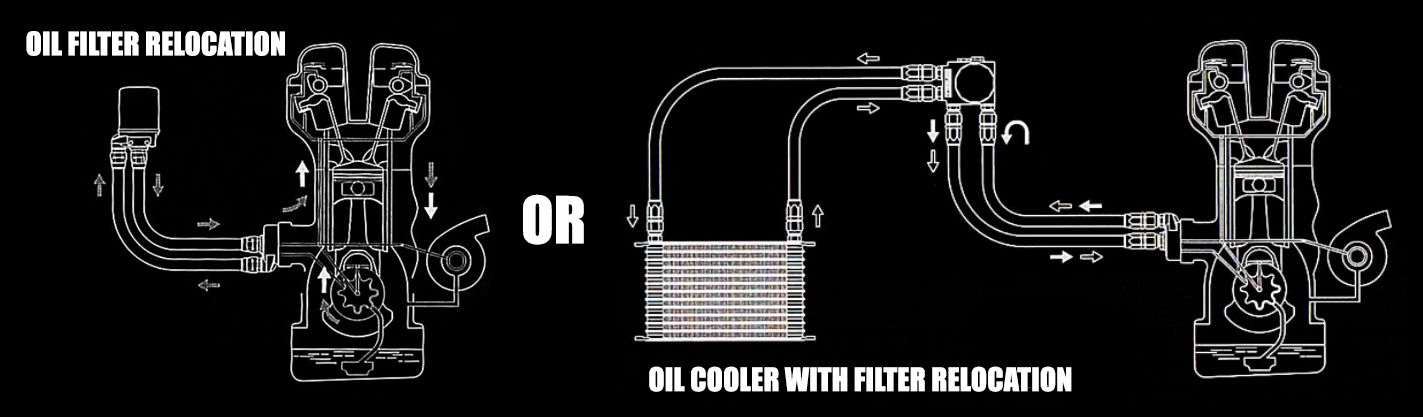

For use as an Oil Cooler Block with Oil Filter Relocation, it should be used with our (sold separately):
12401114 - GREX Type I w/ Thermostat (w/ 3/4x16UNF Oil Filter)

OR

For just Oil Filter Relocation, it should be used with our (sold separately):
12401139 - GREX Type G (with 3/4x16UNF Oil Filter)


Laser etched with GReddy and Taarks logos, with additional oil flow direction and port info.
CNC Machined from 6061-T6 Billet aluminum.
Anodized black for durability

2x optional 1/8" NPT ports in addition to the factory RB sensor ports, allow for installation of aftermarket 1/8NPT gauge sensors.


Includes:
1x RB Oil Block (Black)
2x AN10 ORB Fittings (Black)
2x 1/8" NPT Plug (not JDM 1/8 - BPT)
1x Temp Sensor Block Off Plug
2x Viton O-rings
4x Stainless Steel Allen Key Bolts with Spring Washers

Also compatible with:
Nissan RB20 Engines
Nissan RB25 Engines
Nissan RB26 Engines
Nissan RB30 Engines
