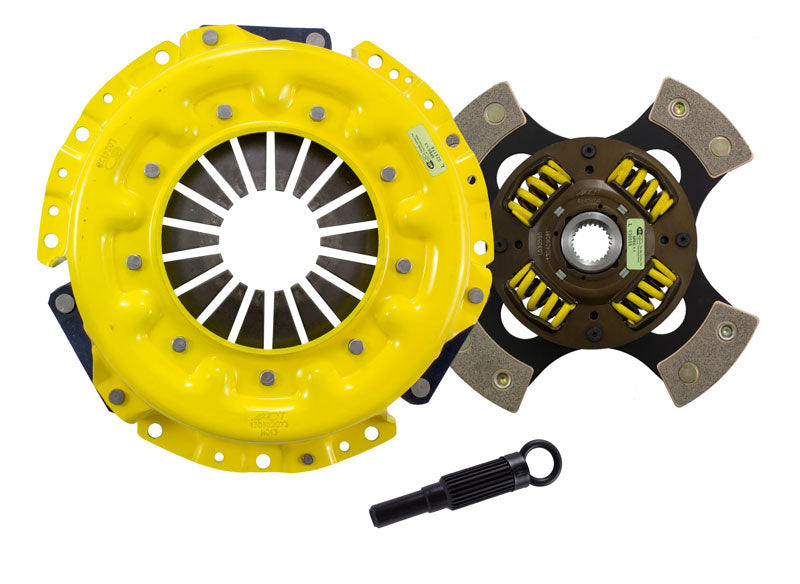

HD/Race Sprung 4 Pad Kit, R32/R33 GTS-T

"Excellence in Performance", backed by the best one-year warranty in the industry!

NS3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

NOTES

• Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Moderate friction life, extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for high horsepower street or race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

SPECIFICATIONS

• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 9.4 IN
• Clutch Disc Diameter: 240 MM
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 IN
• Alignment Tool Included: Yes
• California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
• Product Weight (lbs.): 17.8
• Title: ACT HD/Race Sprung 4 Pad Kit
• Torque Capacity (ft/lbs.): 525
• Torque Capacity Over OE: 86%
