Head Gasket Kit Engine Overhaul (1.2mm~1.6mm), R32-R34

HEAD GASKET KIT ENGINE OVERHAUL

A convenient metal head gasket kit including necessary parts for an engine overhaul.

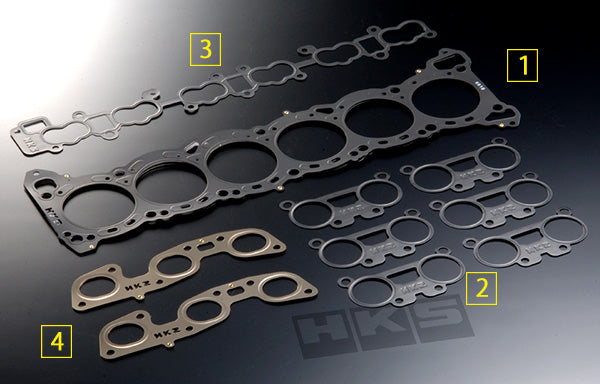

1. HKS Head Gasket
   (Select one from the below 4 options) x 1pc
   • Stopper-type t=1.2
   • Stopper-type t=1.6
   • Grommet-type t=1.2
   • Grommet-type t=1.6
2. HKS Metal Throttle Body Gasket x 6pcs
3. HKS Metal Intake Manifold Gasket x 1pc
4. HKS Metal Exhaust Manifold Gasket x 2pcs

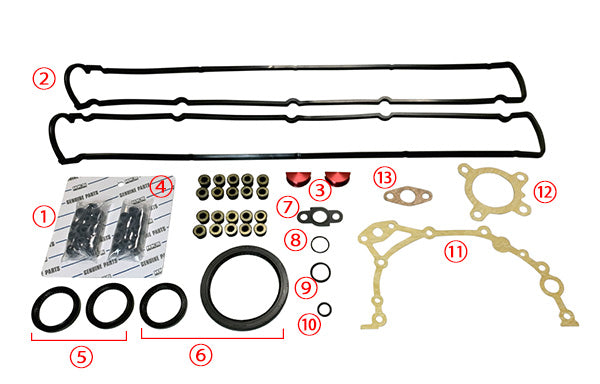

1. HKS Valve Stem Seal IN / EX x 12 pcs each
2. Rocker Cover Gasket IN / EX x 1 pc each
3. Aluminum Plug x 2 pcs
4. Washer for Cylinder Cover x 20 pcs
5. Oil Seal for Camshaft x 2 pcs
6. Oil Seal for Crankshaft  Small / Large x 1 pc each
7. Gasket for Oil Strainer x 1 pc
8. O-ring for Oil Strainer (old type) x 1 pc
9. O-ring for Oil Cooler x 1 pc
10. O-ring for Crank Angle Sensor x 1 pc
11. Gasket for Oil Pump x 1 pc
12. Gasket for Oil Filter x 1 pc
13. Gasket for Oil Outlet Flange x 1 pc

• Includes HKS metal head gasket and gaskets that are required for RB26DETT engine overhaul.
• By using this kit, you can avoid the hassle of arranging the OEM parts individually.
• Specifically selected necessary parts are included in the kit and eliminated the unnecessary parts included in the OEM overhaul kit.
• Highly durable fluorine rubber O-rings manufactured by NOK CORPORATION.
