HKS
Hipermax G, R32
Hipermax G, R32
【HIPERMAX G】
~Obsession with High Quality~
Integration of quality over cost principles of tuning parts and benefits and compatibility gained from OEM design.
Unlike most stock fitment type suspension kits, premium "ride comfort," "style," and "stability" are pursued at the highest level and realized by HKS in this product.
●Single Tube
HKS has been focusing on utilizing "single tube"
technology since beginning development on suspension.
Single tube is the natural choice for HKS because high performance of the single tube has been proven through use by many racing and luxury cars. Single tube suspension the natural choice when product quality is prioritized over everything else. Optimum dampening force, stability and structural rigidity, responsive and reactive setup and superior ride comfort under many different road conditions are all made possible through the use of single tube dampers
●Natural "G" Based on Dynamics
Maintaining the stock (genuine) design structure. Adjustable suspension has the advantage of changing vehicle height to suit an owner’s preference; however, the height adjustment range and stroke length are difficult to maintain. The stock shape type suspension allows more stroke for precise settings; premium ride quality under various road conditions is guaranteed.

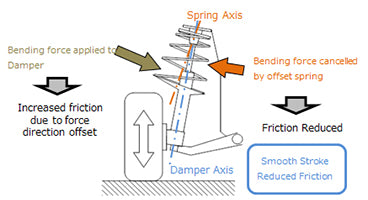

By utilizing the stock suspension structure, spring length can be maintained whilst being able to cancel the bending force applied during suspension stroke compared to coilover type designs. This allows full utilization of the spring and damper's performance. In order to achieve both a high quality ride and appropriate low stance, it is natural from the perspective of chassis dynamics to maintain the design structure of the stock damper.
●Quality from the Materials Up
The spring material is of the highest grade, which exceeds the general standard delivering superior durability.
●High Rigidity Not Comparable with Conventional Dampers

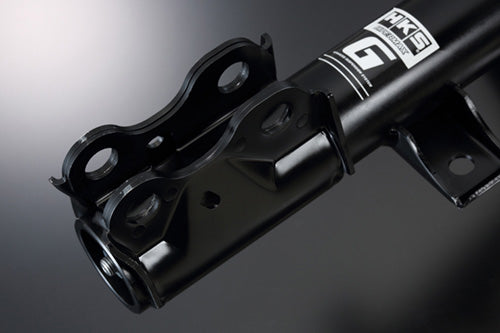

The rigidity of the mounting bracket and case have been greatly enhanced.
With strut type suspension, the damper holds the vehicle weight; therefore, by combining with an inverted type damper, the handling road holding and stability during braking are improved, and a premium ride quality is provided.
●PNE Coating for Long Life Performance
HKS suspension series utilize PNE coating which is proven in snowy regions and the coasts to maintain premium ride comfort. This special surface coating provides 5 times better durability over standard galvanizing.

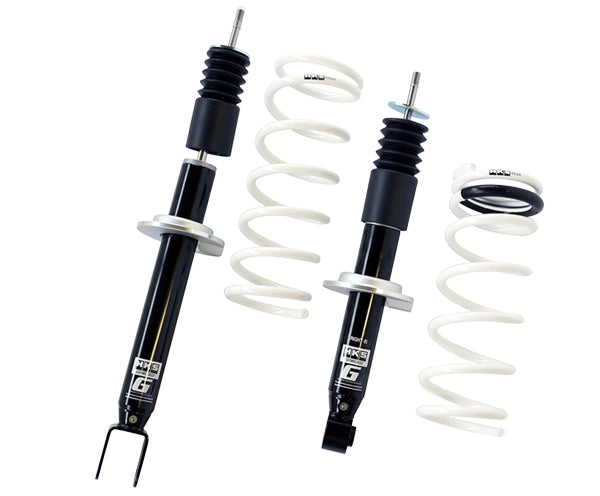

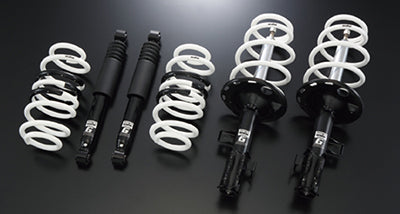

<Product Basic Structure>
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.
■Features
- Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
- It is developed to have reliable riding and handing performance in both street and winding roads.
- The main spring rate is set low, and by using the bumper rubber effectively, it is able to suppress the upthrusting and rolling feeling moderately.
Vehicle | Model | Engine | Model Year | Series | Full Kit Spring Rate F/R | Free Height | Damping Force Piston Speed 0.1m/sec Damping Force N | Vehicle Height (Highest - Lowest) | Code No. | Price | Instruction Manual | Remarks | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
F: Rebound/Compression | R: Rebound/Compression | |||||||||||||
SKYLINE GT-R | BNR32 | RB26DETT | 89/08 -94/12 | G | F=35(3.6)/R=37(3.7) | Special/Special | 314/157 | 402/98 | -36 | -19 | 80260-AN001 | more |
