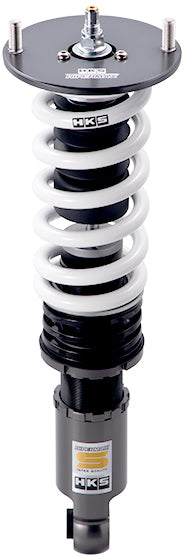

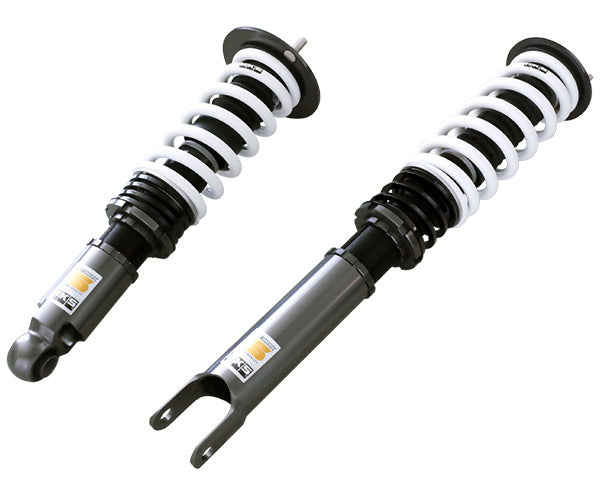

Hipermax S, R32-R34
Hipermax S, R32-R34
Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.
Detailed Product Info: HKS Hipermax S Coilovers
Videos: Hipermax S Videos
Single Tube Damper Design
The new HIPERMAX S series continue to employing the single tube structure.
The advantage of this structure is to be able to provide the gas and oil chamber separately, and then it allows to use of a large diameter piston. As a result, a quality and stable damping force is gained.
Inverted Shock Absorber (Strut)
・Large lateral forces are spread over a larger area increasing rigidity under high loads or with larger wheels
・Damper is attached to body side reducing un-sprung weight for improved handling
Dual PVS
The Pre-load Valve System, introduced in the previous MAX IV GT 20 Spec,S-Style L,S-Style C, created a remarkable difference to handling performance. This has been further refined to introduce “Dual PVS”.
High speed damping is reduced while keeping unnecessary movement to a minimum.
WR Needle: Wide range damping force adjustment mechanism
The improved shape of the needle expands the oil relief channel. Each step of the 30 step adjustment is now more prominent. Having softer adjustment options gives more options for street driving.
ADVANCED BUMP RUBBER(Evolution of Bump stop rubber)
For HIPERMAX S, a further improved “ADVANCED BUMP RUBBER” was developed which pursues further softness and also shorter variations deliver a wide range of options for a variety of cars delivers a natural and smooth experience

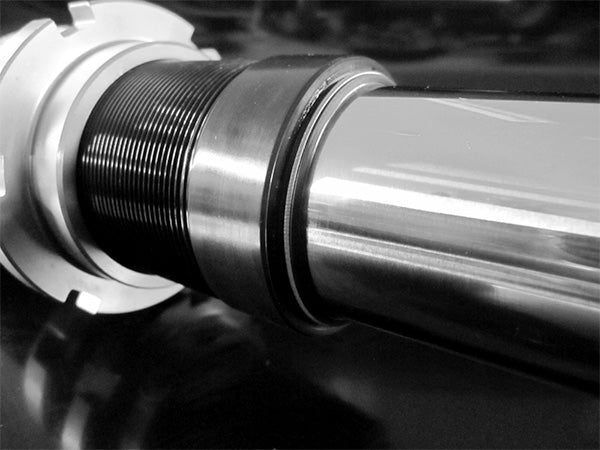

PNE Coating
HKS previously introduced SNOW EDITION versions to combat corrosion head on. The result of this development was PNE coating delivering 5x better durability compared to standard galvanizing
Strengthened Rubber Upper Mount
Strengthened rubber upper mount is able to absorb small body vibrations whilst tightening up the mount over stock. Revised cross sectional design and material composition balance comfort and performance

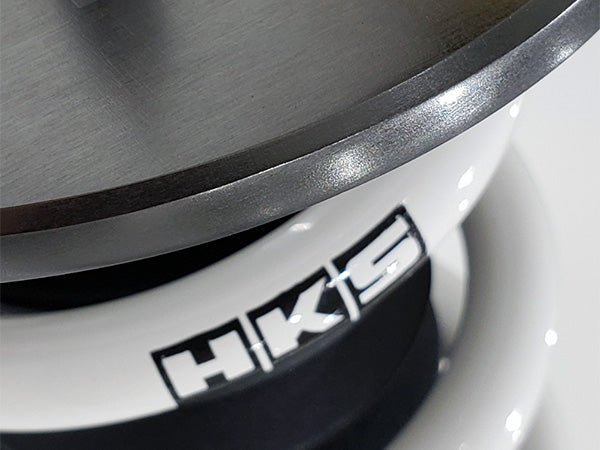

"KODAWARI" of Exterior

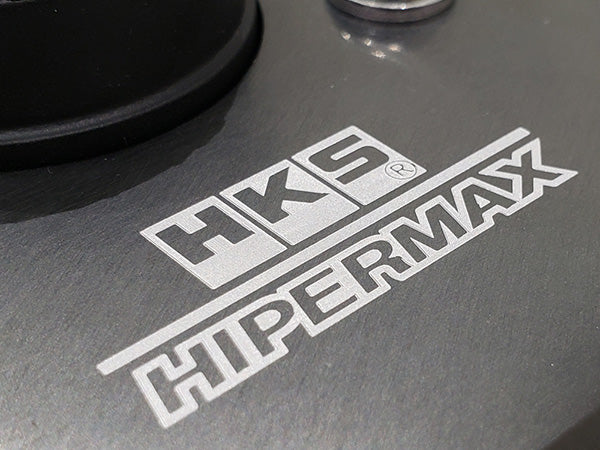

The aluminum top mount is chamfered by machining to enhance the beauty of the product. Delivering detail and quality which was not previously available through previous printing methods
Peace of mind with 3 years warranty
The internal structure of the HIPERMAX IV GT series has been reviewed in HIPERMAX S to deliver a 3 year warranty over the existing 1yr.
Extensive in house durability testing and development has resulted in improved correlation between test bench and real road data and in-house manufacturing allows for quality control of all components which provides the necessary evidence to deliver the 3yr warranty with confidence.
Application
Engine | RB26DETT |
---|---|
Model Year | 89/08 - 94/12 |
Remarks |
Specification
FRONT | REAR | |
---|---|---|
Damping force adjustment | 30 steps | 30 steps |
Base valve | - | - |
Height adjustable lower bracket | ○ | ○ |
Upper mount | Rubber | Rubber |
Inverted/Normal type | Normal | Normal |
Damper/Spring layout | Coilover | Coilover |
Spring rate change at factory | Possible | Possible |
Damping force adjustment with wire | - | ○ |
Helper spring (Spring rate N/mm) |
○ ( 19.8 ) | ○ ( 19.8 ) |
Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
---|---|---|---|---|---|
FRONT | Ride height *1 | 656 | ← | 695 ~ 627 | 695 ~ 629 |
Against stock | -39 | ← | ~ -68 | ~ -66 | |
REAR | Ride height *1 | 656 | ← | 671 ~ 608 | 671 ~ 608 |
Against stock | -15 | ← | ~ -63 | ~ -63 |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
F | R | |
---|---|---|
Spring rate N/mm(kgf/mm) | 98 ( 10 ) | 78 ( 8 ) |
Free height (mm) | 200 | 220 |
Spring type | Straight | Straight Barrel type |
Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
Specification of damper
F | R | |
---|---|---|
Damping force (Rebound/Damping)N* | 1515 / 456 | 652 / 348 |
Default position of dial | 15 | 15 |
Remaining damper stroke (Rebound/Damping)mm | 43 / 56 | 62 / 74 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F | R | |||||||
---|---|---|---|---|---|---|---|---|
Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
Length of case (mm) |
279 | ← | 316 | 270 | 410 | ← | 424 | 377 |
Spring Set length(mm) |
237 | ← | 236 | 255 | 287 | ← | ← | 297 |
Length to ride hight adjuster (mm) |
29 | ← | 67 | 2 | 43 | ← | 57 | |
Lever ratio | 1.03 | 1.12 |
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.

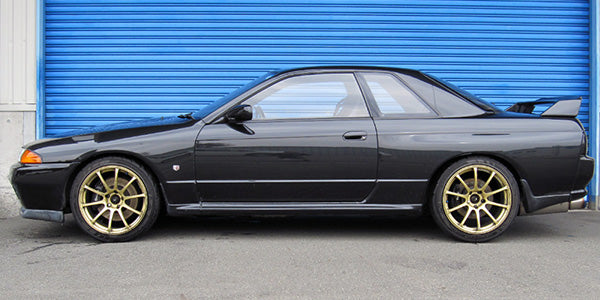

Test vehicle information
F | R | ||
---|---|---|---|
Vehicle weight kg | - | - | |
Tire size (Air pressure) kPa | 235 / 40 - 18 ( 230 ) | 235 / 40 - 18 ( 230 ) | |
Wheel size | 9 JJ × 18 inset 22 | 9 JJ × 18 inset 22 | |
Alignment (Toe/Camber) |
Test data | out 1 mm / -2°00' | in 0 mm / -2°33' |
Standard value | 0 ~ in 2 mm / -0°55' ± 45' | in 2 ± 2 mm / -1°05' ± 30' |
* Test data at HKS.
