Intake, Exhaust, and Throttle Body Gasket Kits, R32-R34

Intake, Exhaust, and Throttle Body Gasket Kits, R32-R34

Regular price $36.00
Regular price Sale price $36.00
Sale Sold out
Shipping calculated at checkout.
Size

INTAKE & EXHAUST GASKET

Intake & Exhaust Gaskets for RB26 are now available separately.

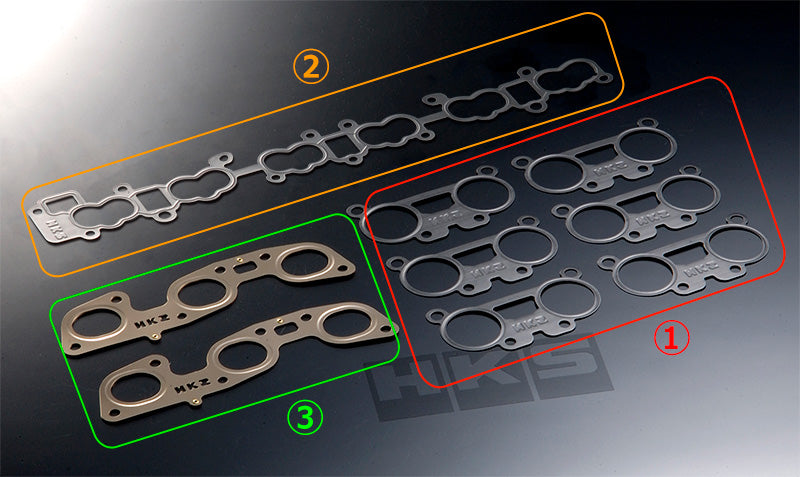

●Throttle body Gasket, Intake Manifold Gasket

  • HKS changed the gasket material from paper to metal with NBR coating on a side of cold-rolled steel sheet. These won't stick like the stock ones when replacing the intake manifold.
  • Metal+Bead type. Ensure the sealing performance at high temperature and high boost.
  • Metal material keeps rigidity of surrounding intake air parts even after changing or replacing surge tanks etc.
  • Engraved with HKS logo.

●Exhaust Manifold Gasket

  • Adopting 4 layers of metal structure (t=0.8mm, SUS) won't stick like the stock one when replacing the exhaust manifold.
  • Heat treated to improved heat deformation resistance.
  • Metal material keeps the rigidity of surrounding exhaust parts even after changing or replacing exhaust manifold etc.
  • Engraved with HKS logo.
Product Engine Type Thickness Surface Treatment Layer Qty Code No. Instruction Manual Detail Remarks
Gasket, Throttle body RB26DETT Metal Bead t=0.45 NBR coating 1 6 23009-AK001
Gasket, Intake Manifold RB26DETT Metal Bead t=0.45 NBR coating 1 1 23009-AK002
Gasket, Exhaust Manifold RB26DETT Metal Bead t=0.8 Heat treatment 4 2 23009-AK003
Gasket, Intake & Exhaust set RB26DETT Metal Bead - - - - 23009-AK004 Includes Gasket throttle body.
