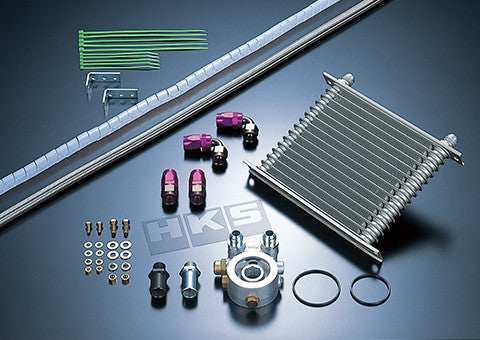

Oil Cooler Kit S Type #12, R32-R34

【OIL COOLER KIT】

It's very important to control the oil temperature to enjoy driving.

Extreme increases in oil temperature can break down the oil and decreases its ability to lubricate, cool and clean the engine and can cause damage as a result. HKS Oil Cooler Kits are designed with advanced cooling technology which enables stable oil temperatures to extract the maximum ability from the engine.

HKS Oil Cooler Kit S Type is a sandwich type which has a built-in thermostat attachment.

HKS Oil Cooler S Type includes a built-in thermostat attachment, and which is held in place by the oil filter. Also, it provides superior cost performance.

[ Oil Temperature Meter: Oil Pressure Gauge Installation Hole]

Adaptor Thermo: M12×P1.25 (1hole) , PT1/8 (1 hole)

Note on Installation of Universal Oil Cooler Kit

Before Purchasing the Product

• There are inapplicable vehicles depending on vehicles' specifications.
• Check the followings to make sure the kit is compatible with your vehicle.

1. Screw Size for Oil Filter Installation

The screw size must be 3/4-16UNF or M20×P=1.5.

2. Clearance for Attachment Installation

To install the engine block attachment, adequate clearance is required. See the diagrams below. (In unit of mm)

3. Oil Filter

The screw can be installed properly as shown in the diagram on the right.
