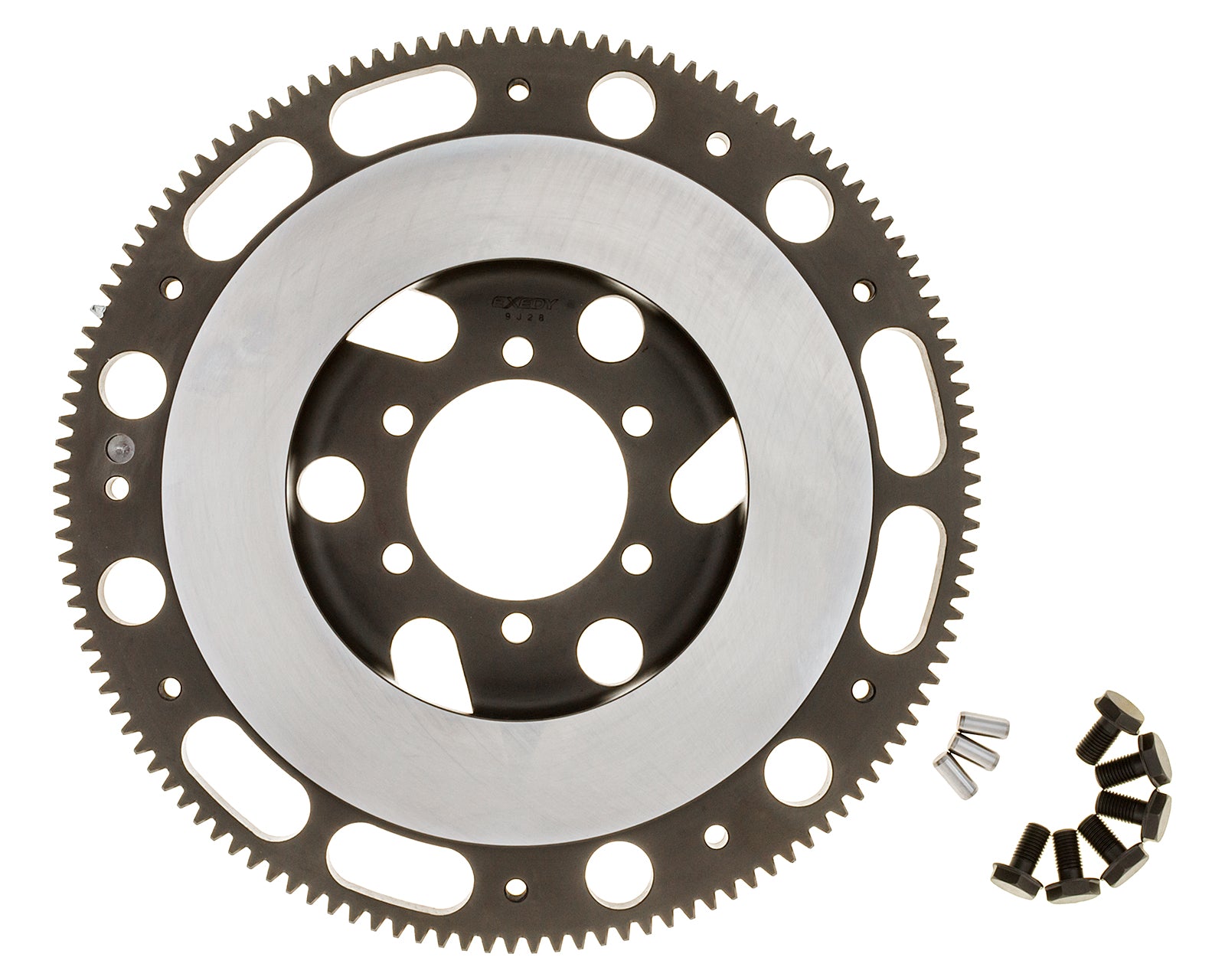

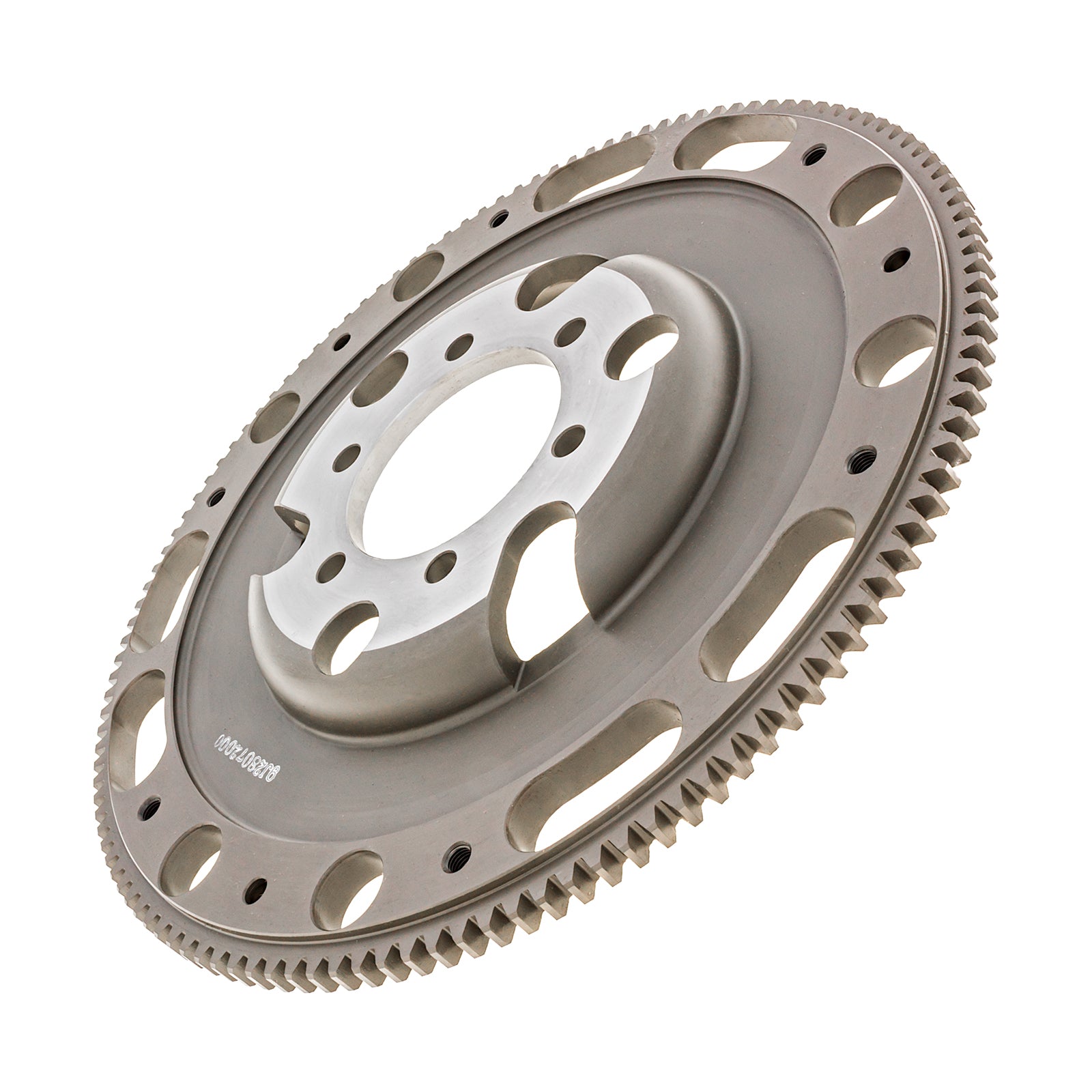

Racing Lightweight Flywheel, FC3S/FD3S

EXEDY Lightweight Flywheels combine low weight, low inertia and high thermal capacity. They are designed for light to moderately tuned racing cars for drag racing, autocross and rally events, as well as street usage. They are made from solid one-piece billet chromoly steel or chromoly steel forgings. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the airflow which improves the cooling of the clutch.

The ring gear teeth are integrated onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel and has the possibility of separating from the flywheel due to the different expansion coefficients of aluminum and steel. Newly available are lightweight, solid replacements for vehicles fitted with OE dual mass flywheels. EXEDY lightweight flywheels have passed engineering tests to 15,000-18,000 RPM. They are guaranteed not to fail to the said RPM, and are all SFI approved.

Product Details:

• Package Dimensions: 12.5 x 2 x 2 inches
• Package Weight: 11.7 lbs

NOTES:

• FC3S, When using ZF01 flywheel in vehicles built prior to 1/89 use adapter / counterweight N327-11-521A. Vehicles after 1/89 use adapter / counterweight N351-11-521.

• FD3S, When using ZF01 flywheel, use adapter / counterweight N351-11-521.
