Stage 4 Hyper Twin Metallic Clutch and Flywheel Kit, FC3S

For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street action as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use.

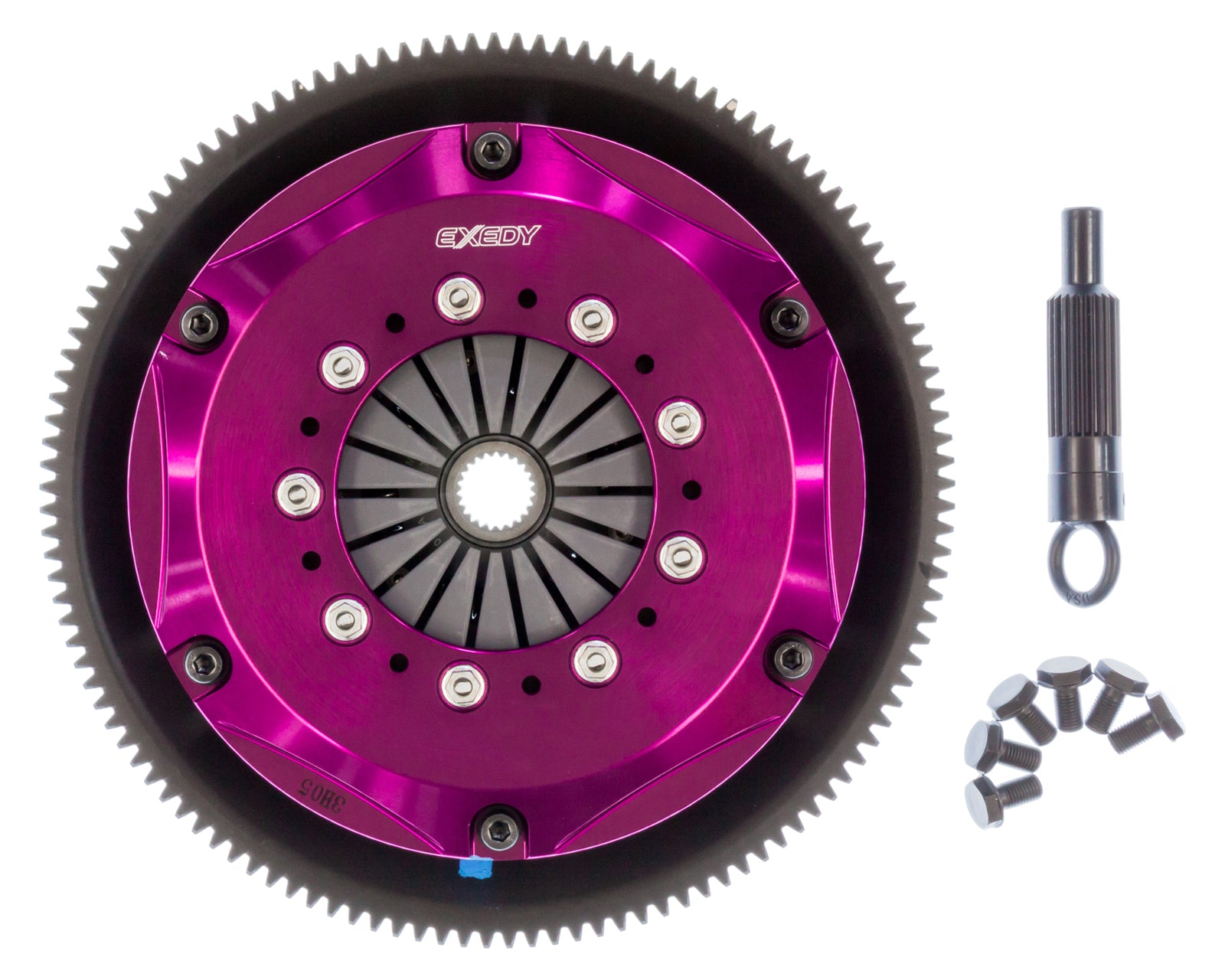

All EXEDY Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it's additional power capability, most multi-plate clutches exhibit light pedal pressure thanks to a half-engaged "zone" provided by the patented clutch "cushion" function.

Product Specifications

• Disc Type: cerametalic twin disc, sprung center disc
• Dependency
• need adapter / counterweight N327-11-521A (Built prior to 1/1989)

• need adapter / counterweight N351-11-521 (Built after 1/1989)

• Spline: 23 spline
• Torque Capacity: 511 torque capacity @ wheels
• Package Dimensions: 16.25 x 5.5 x 5.5 inches
• Package Weight: 35.27 lbs


Need adapter / counterweight N327-11-521A (Built prior to 1/1989), N351-11-521 (Built after 1/1989)
