Stopper Type Head Gasket Kit (1.2mm~1.6mm), R32-R34

Stopper Type Head Gasket Kit (1.2mm~1.6mm), R32-R34

Regular price $290.00
Regular price Sale price $290.00
Sale Sold out
Shipping calculated at checkout.
Size

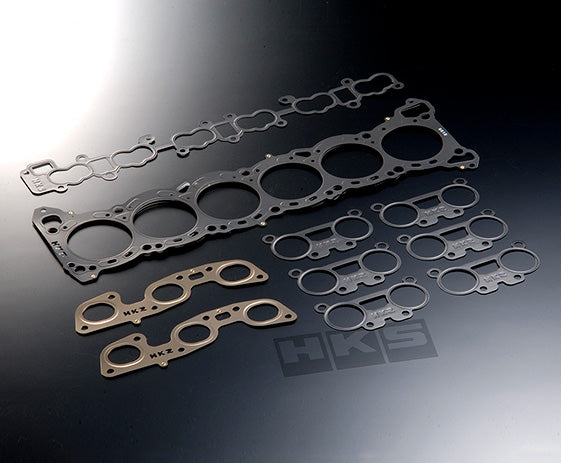

STOPPER TYPE HEAD GASKET KIT

Gaskets are included for stopper type head gasket and etc., exhaust manifold, throttle and intake manifold.

We have adopted and renewed very popular “Independent bead shape”
4G63 yet for RB26DETT which is still very active in the tuning market.



■Feature

  • For the race the "Independent bead" is the main stream of the water holes or Head Bolt holes. So even if the combustion gas is leaked because of big power setting or degradation, it will reduce the risk of overheat by making it water holes independent bead.
  • By redesigning the water holes area between Head Bolt holes and bore, it will protect head from water flow in because it will prevent the crack at the Head Bolt holes block.
  • We also have redesigned the stopper and bead which make less likely to leak.
  • Bench test vehicle was 660ps and actual drive test vehicle was 600ps and 80kgm torque at a circuit.
  • The kit comes with conventional products of exhaust manifold, intake manifold and metal gasket of throttle.



■Remarks

  • We recommend to use with strengthen head bolt kit.
Engine Thickness (mm) Compression Ratio Bore Code No. Instruction Manual Detail Remarks
RB26DETT 1.2 ε=8.7 φ87.5 23009-AN008 Detail For φ86 & φ87 piston (Independent Water holes)
RB26DETT 1.6 ε=8.3 φ87.5 23009-AN009 Detail For φ86 & φ87 piston (Independent Water holes)
