Tomei
Technical Trax Advance Rear LSD 1.5/2 Way, R32 (pre-'93)
Technical Trax Advance Rear LSD 1.5/2 Way, R32 (pre-'93)
Regular price
$981.00
Regular price
$1,090.00
Sale price
$981.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
* Not for Active LSD model R33s and R34s!
| TYPE | PCD | DISC | SPRING | Size & No. of Ring Gear Bolts | No. of Serration Teeth | Flange In Dia. | Initial Torque Pre Setting (kg.m) | Super High Initial | Pressure Ring Cam Angle | ||||||
| Ext Dia. | No. (In Dia.) | No. (Ex Dia.) | Thickness | No. Ex Teeth | No. In Teeth | No. Teeth N/A | No. Teeth N/A Strengthening |
||||||||
| EA1 | 150 | 106 | 10 | 10 | 1.7 | OPT | OPT | 2 | N/A | 10-Φ13 | 30T | Φ32.0 | 16.5～18.5 | ○ | 60°×45° |
| EA2 | 150 | 106 | 10 | 10 | 1.7 | OPT | OPT | 2 | N/A | 10-Φ13 | 30T | Φ32.0 | 16.5～18.5 | ○ | 60°×60° |

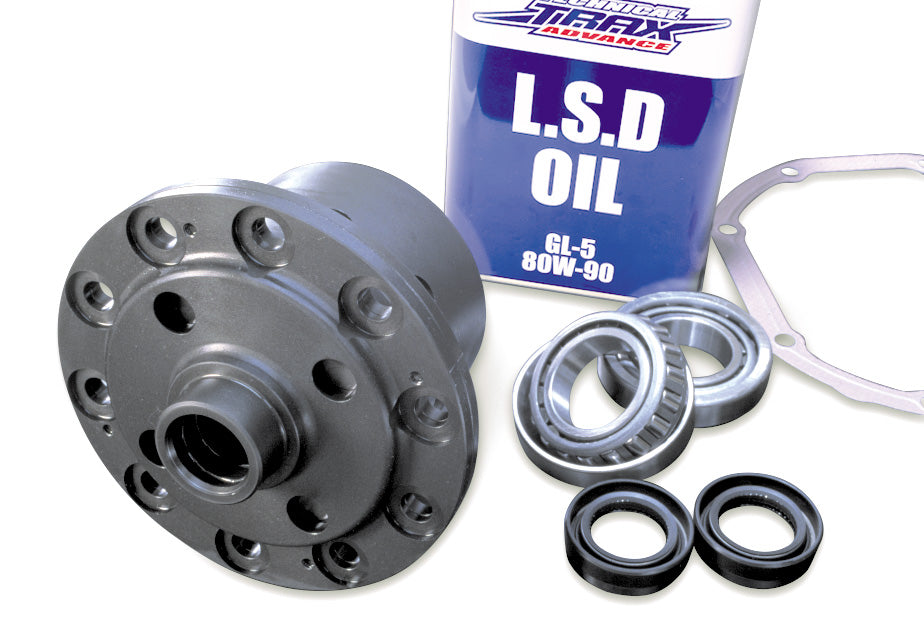

Kit Includes:
- L.S.D ×1
- Low Friction High Grade Oil 2 Litres
- Carrier Cover Gaskets ×1
- Bearings ×2
- Oil Seals ×2
NOTE: R32 Late Model (93+), R33 and R34 all require exchanging part numbers 38220-05U10 and 38220-05U11 for each.
