Tomei
Head Gasket Combination Set (87~88mm 1.2mm~1.8mm), R32-R34
Head Gasket Combination Set (87~88mm 1.2mm~1.8mm), R32-R34

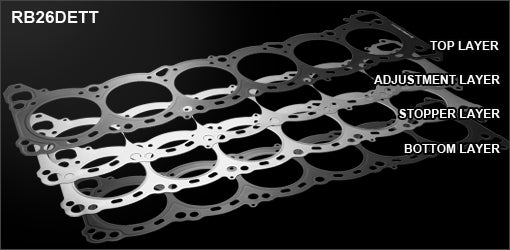

The Tomei multiple layered head gasket is a great choice for an RB26 build. Tomei has invested heavily to determine the weak points of the OE gaskets. From this, Tomei has incorporated the super grommet design that can resist increased surface pressure around the bore. These head gaskets will take the burden of stress found in today's highly tuned performance engines. We are proud to offer these fantastic Tomei head gaskets for your next RB26 build.
MATERIAL & COATING
STAINLESS STEEL
Stainless steel is used across all our high performance gaskets. Robust and resistant to high temperatures, stainless steel facilitates efficient transfer of heat from the combustion chamber to the cylinder block. In addition, it's flexible nature further strengthens the seal made by the spring-like beads which helps prevent issues such as blown gaskets and melted cylinder blocks.
UNIQUE RUBBER COATING
Both the top and bottom layers of the gaskets are coated in a specially developed unique rubber coating that reinforces the seal and contact with the head/block surfaces.

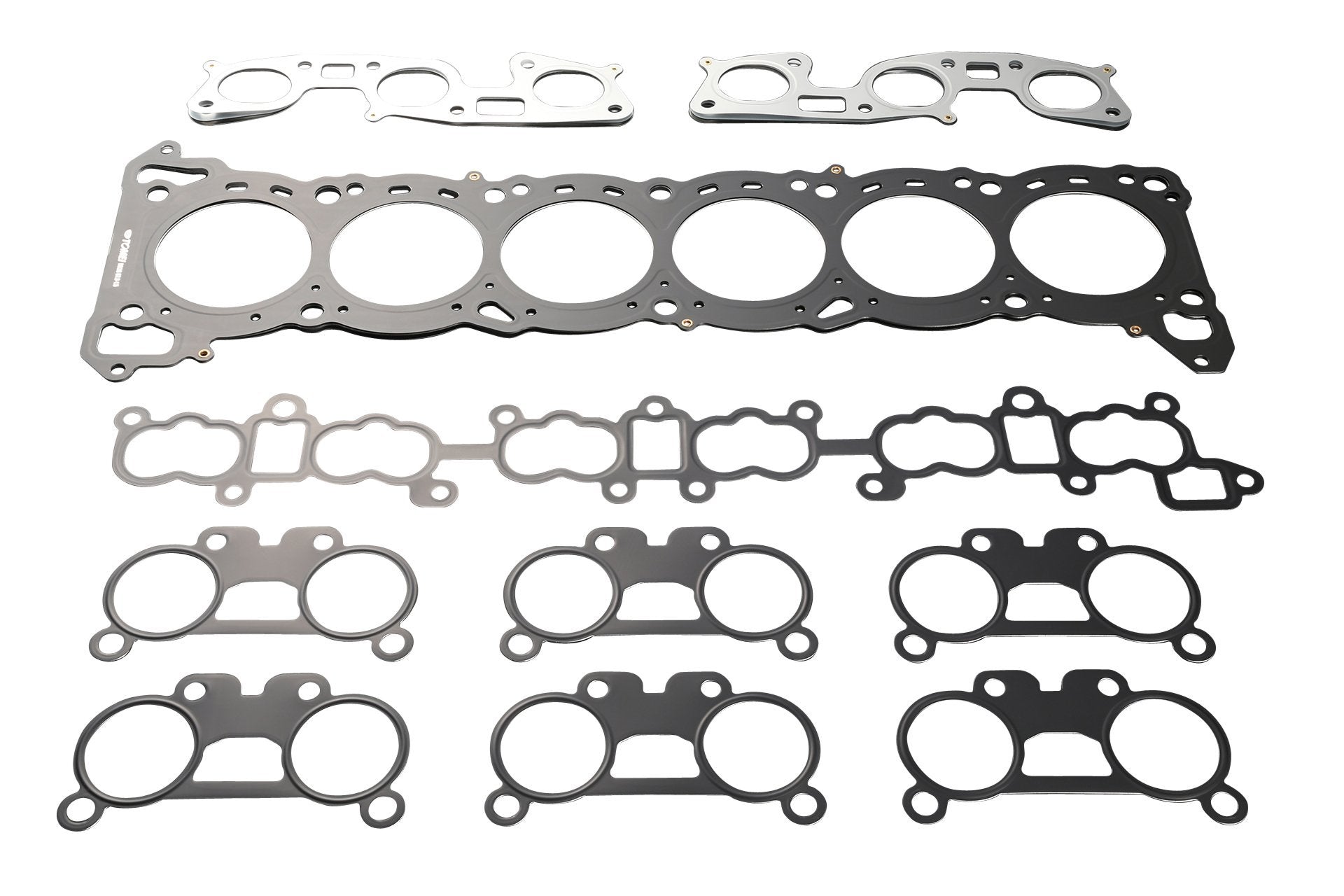

Combination Gasket
This kit includes RB26 Head gasket and other manifold gaskets required.
Also, attachment of oil gallery orifice at the time of replacing head gasket allows controlling the amount of oil to flow. Replacement of manifold gasket can gain strength and sealing characteristics.
We set the price of this kit as low as the price of one head gasket, and even including manifold gasket kit and oil gallery orifice.
All the products in this kit are performance parts that can be used from overhaul to the tuning for the drag racing.
BORE
|
THICKNESS
|
PART NO.
|
MSRP
|
CONTENTS
|
Φ87.0
|
1.2mm
|
TA4010-NS05A
|
$280.00
|
・Head gasket
・Throttle Gasket ・Intake Manifold Gasket ・Exhaust Manifold Gasket ・Oil gallery orifice |
1.5mm
|
TA4010-NS05B
|
|||
1.8mm
|
TA4010-NS05C
|
|||
Φ88.0
|
1.2mm
|
TA4010-NS05D
|
||
1.5mm
|
TA4010-NS05E
|
|||
1.8mm
|
TA4010-NS05F
|
NOTE: contact us to purchase gaskets separately
