Forged Piston Kit 87mm, R32-R34
Forged Piston Kit 87mm, R32-R34
Regular price
$1,404.00
Regular price
$1,560.00
Sale price
$1,404.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

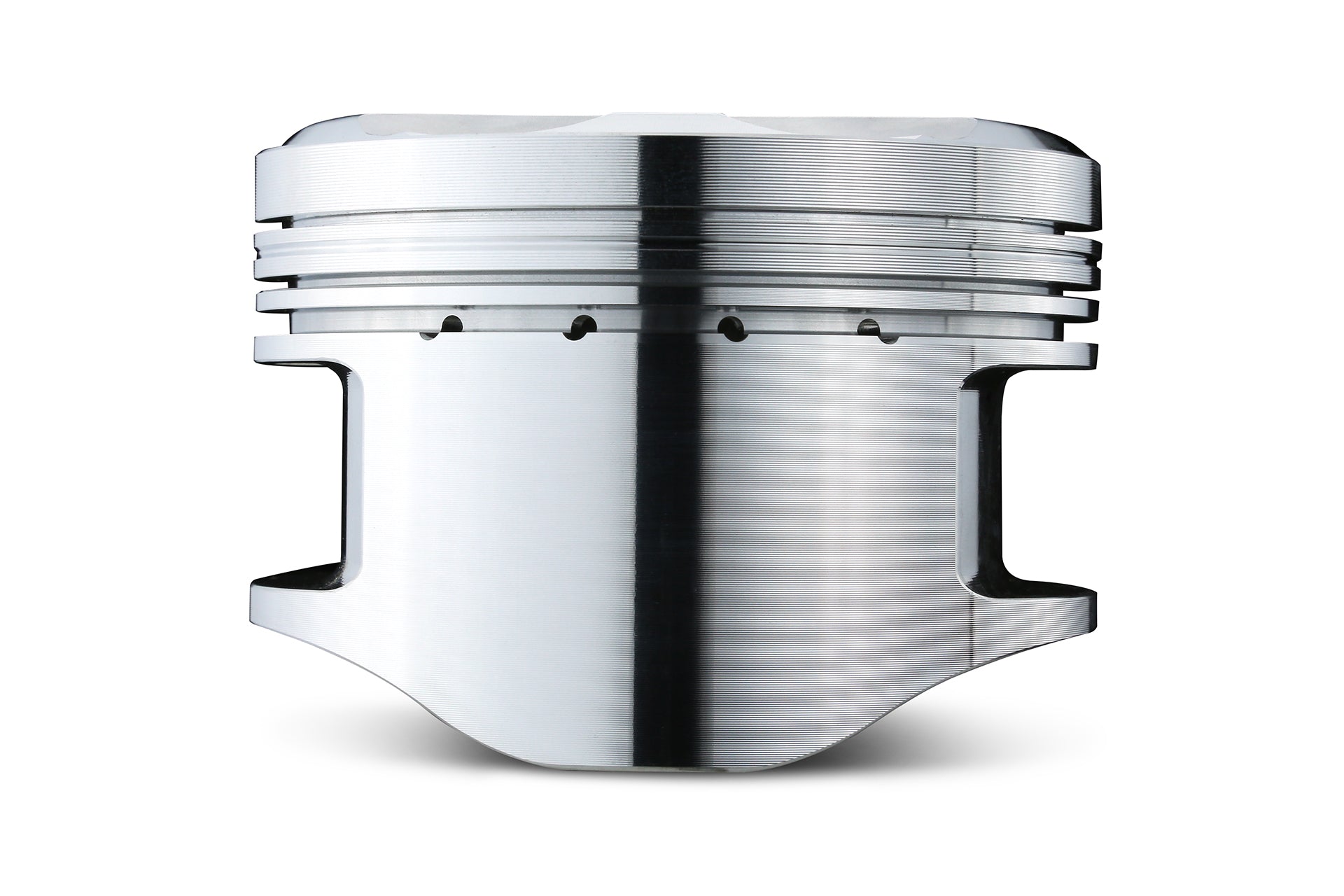

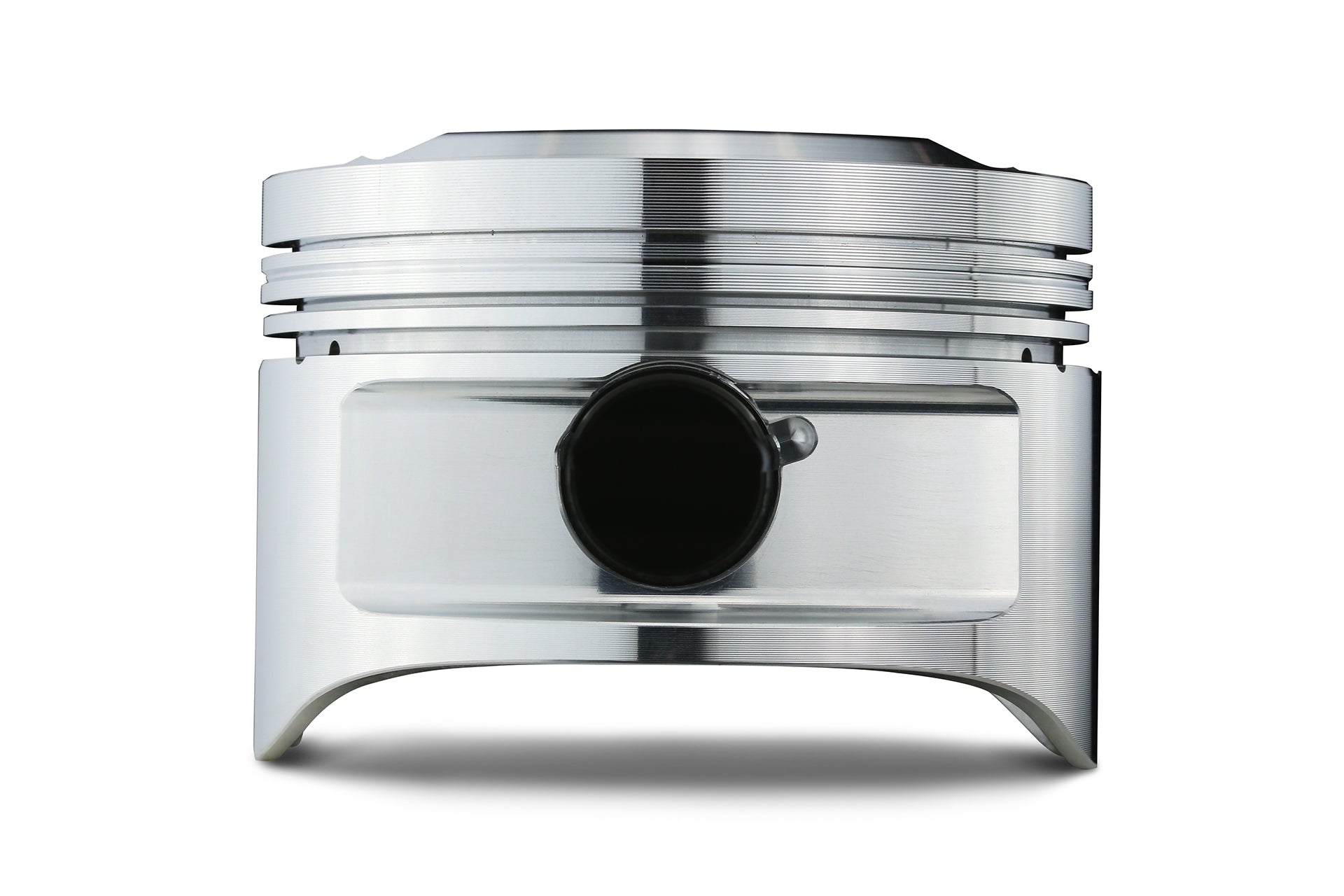

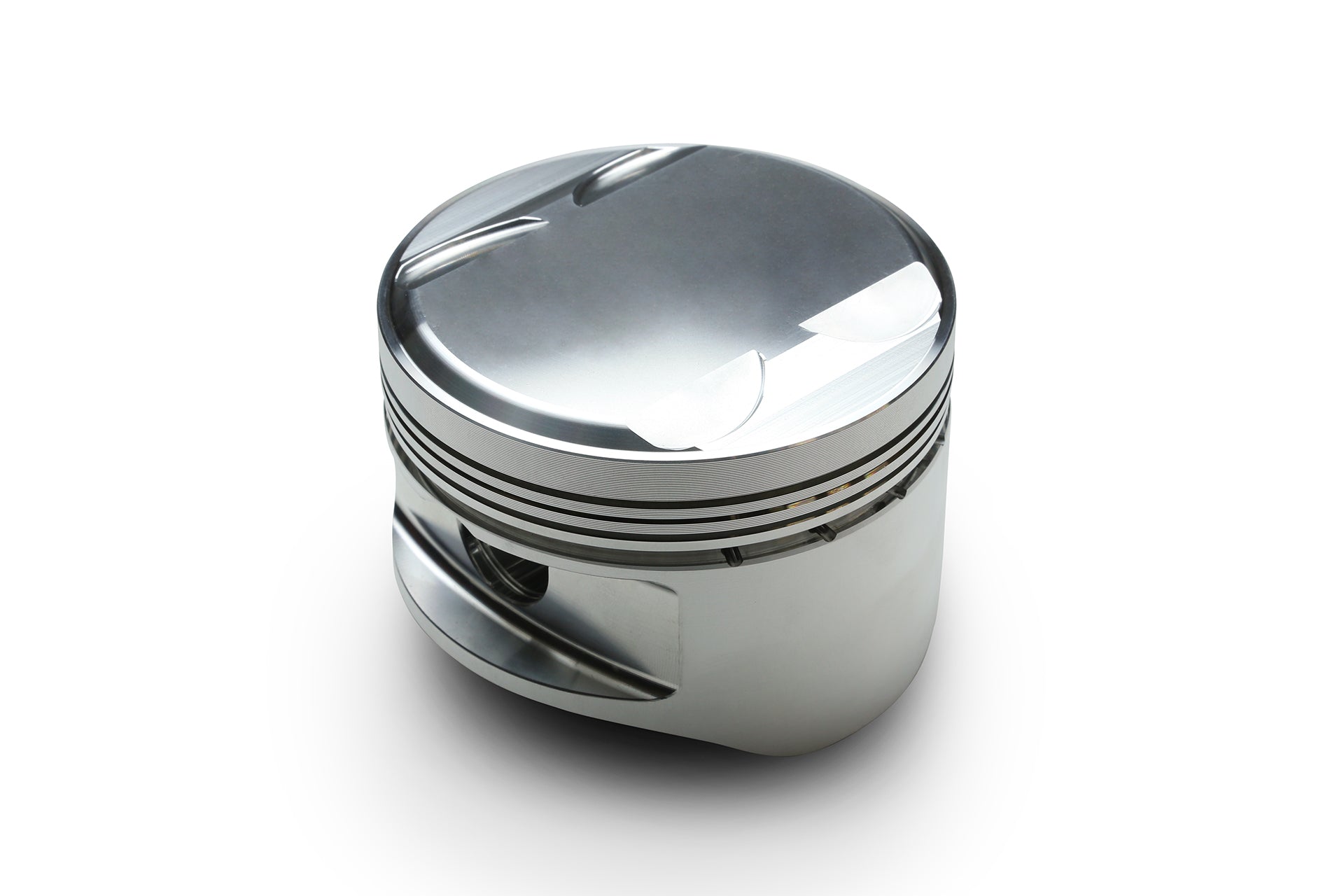

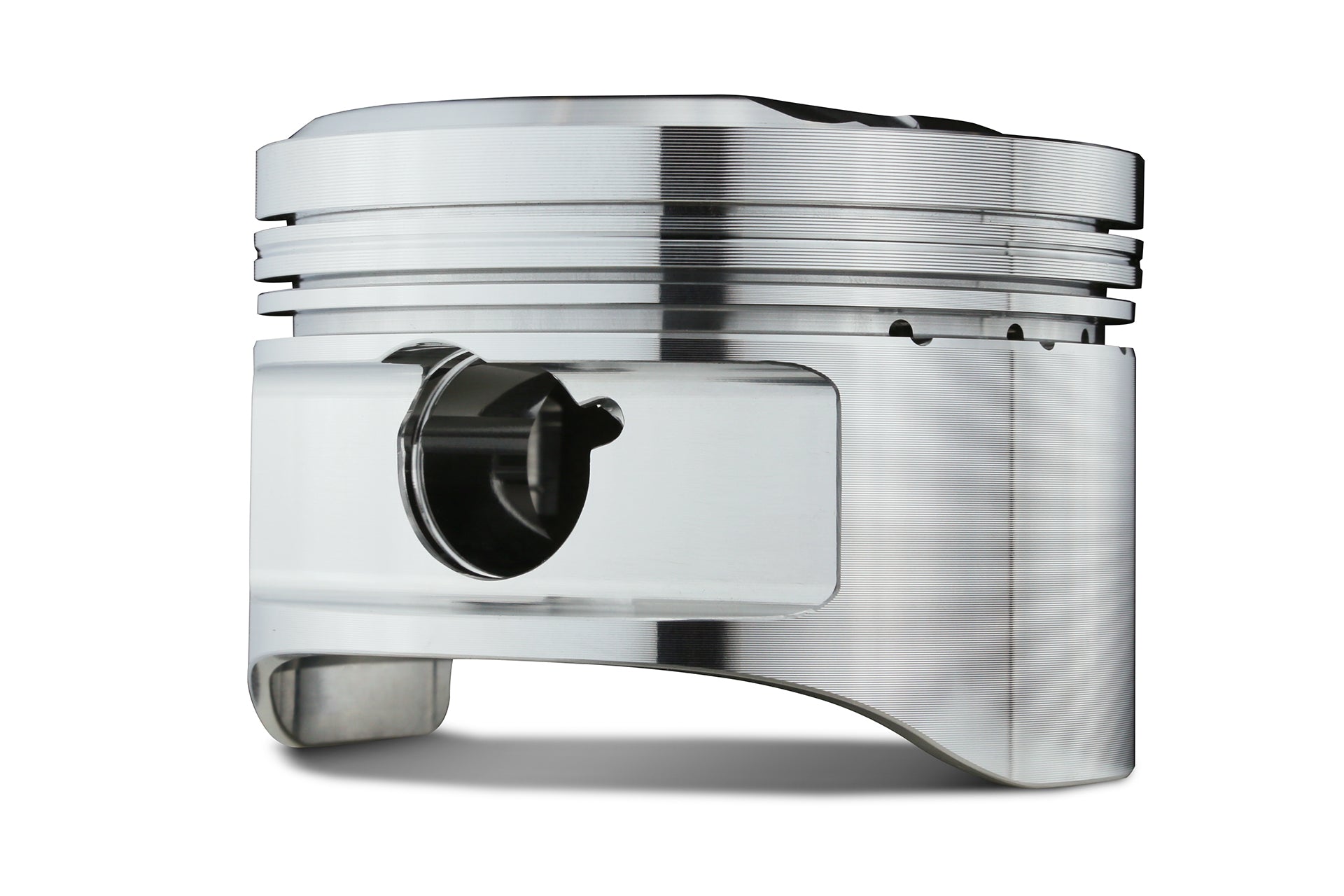

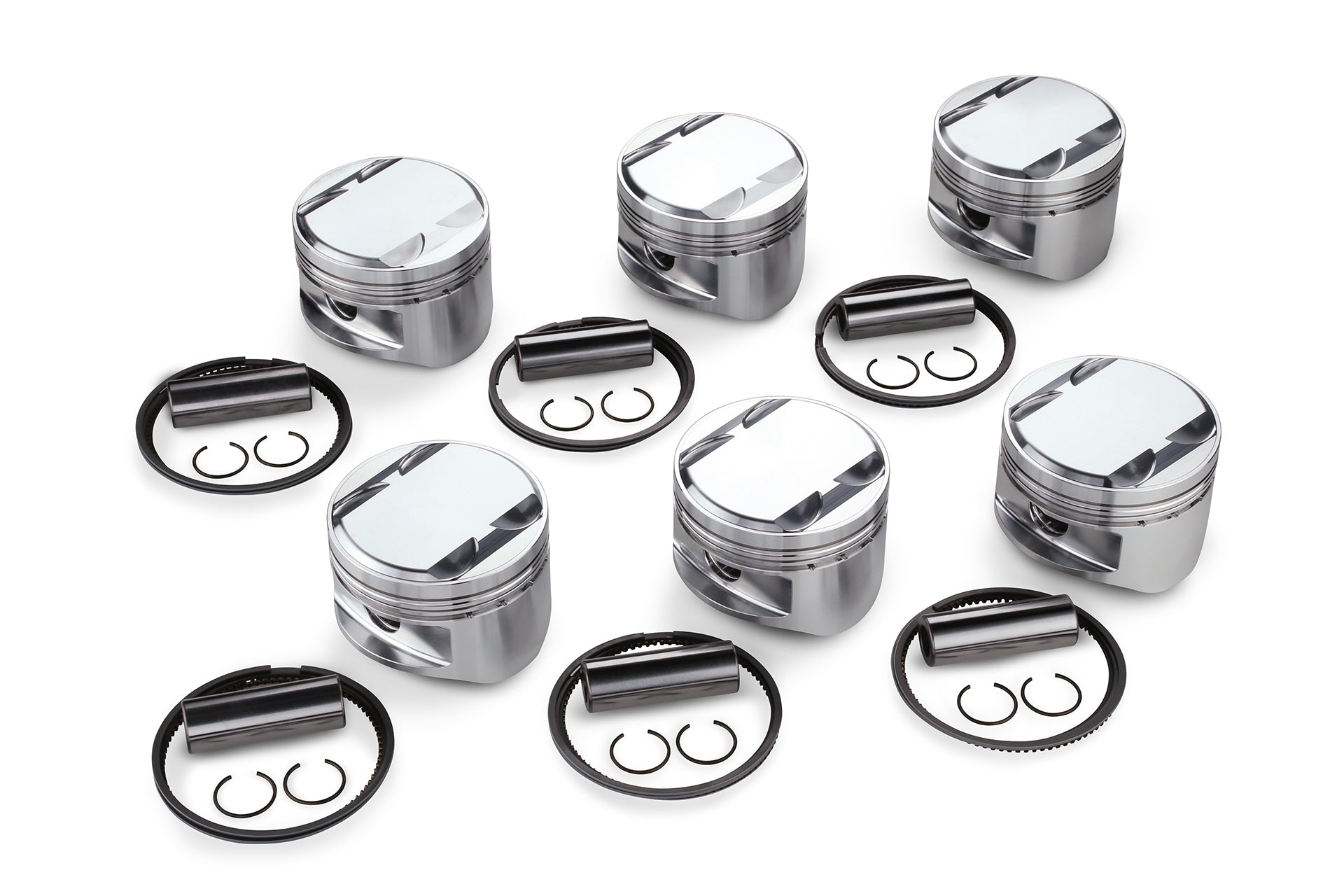

Tomei piston set is a great addition to any performance build. Pistons are both compatible with RB26 and RB28 stroker kit. Forged for light weight and high rigidity, each piston model designed from aluminum forging. Compatible with standard and 1mm oversized valve. Optimized oil jet clearance, and a thin piston ring design to reduce friction. Sets include piston rings, pins and circlips.
- 21mm Diameter Pistons
- Displacement RB26/2628cc Or With Stroker RB28/2770cc
- For Use With 87mm Bore
- Special Order Please Call or Email For Availability
| BORE (mm) | 87.00 (STOCK +1.0) |
| PIN DIA. (mm) | 21.0 |
| PIN LENGTH (mm) | 60.0 |
| CLIP INNNER DIA. | 21.0 |
| VALVE RECESS | WITH |
| COMP.HEIGHT (mm) | 30.00 (STOCK ±0.0) |
| PISTON DOME VOL. (cc) | 10.8 |
| PISTON WEIGHT (g) | 368.0 |
| PIN WEIGHT (g) | 106.0 |
| TOTAL WEIGHT (g) | 474.0 |
| TOP RING (mm) | 1.20 x 3.05 |
| SECOND RING (mm) | 1.20 x 3.90 |
| OIL RING (mm) | 2.50 x 2.95 |
| MATERIAL | A4032 |
