Tomei
Reinforced Valve Spring Set, R32-R34
Reinforced Valve Spring Set, R32-R34
Regular price
$270.00
Regular price
$300.00
Sale price
$270.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
High quality designed springs is required to transfer the exact movement of the camshaft to the valves at high engine speeds on high performance engines. The TOMEI products are always engineered with precision in mind to suit the user’s needs. So with this in mind careful choices in material selection is made with surface coating and other technologies. Then the pre-production products are put through an extensive testing program for checking durability, quality and performance. We spend time and money to help you save your valuable time and money.

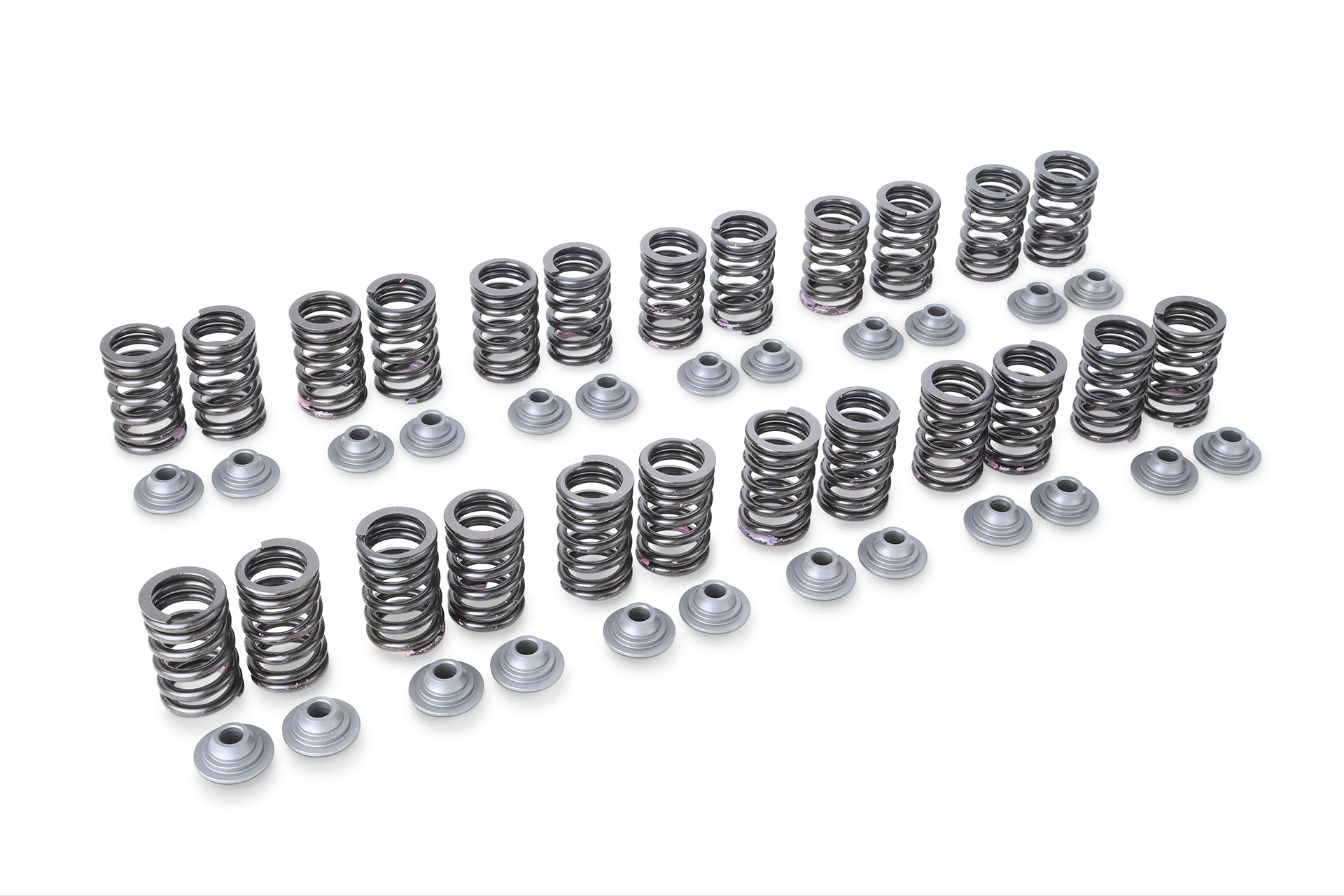

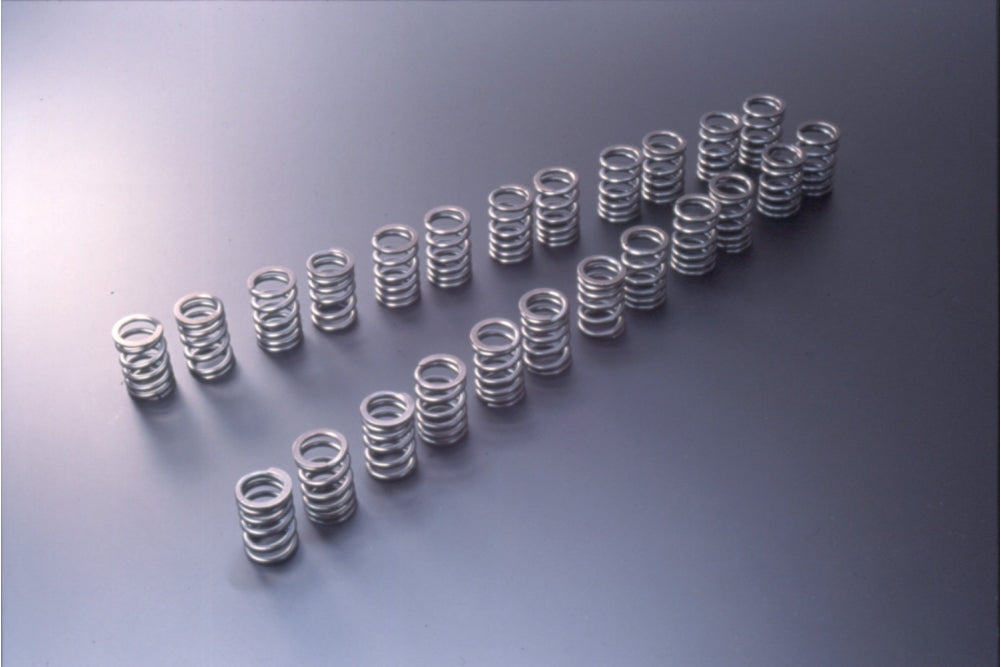

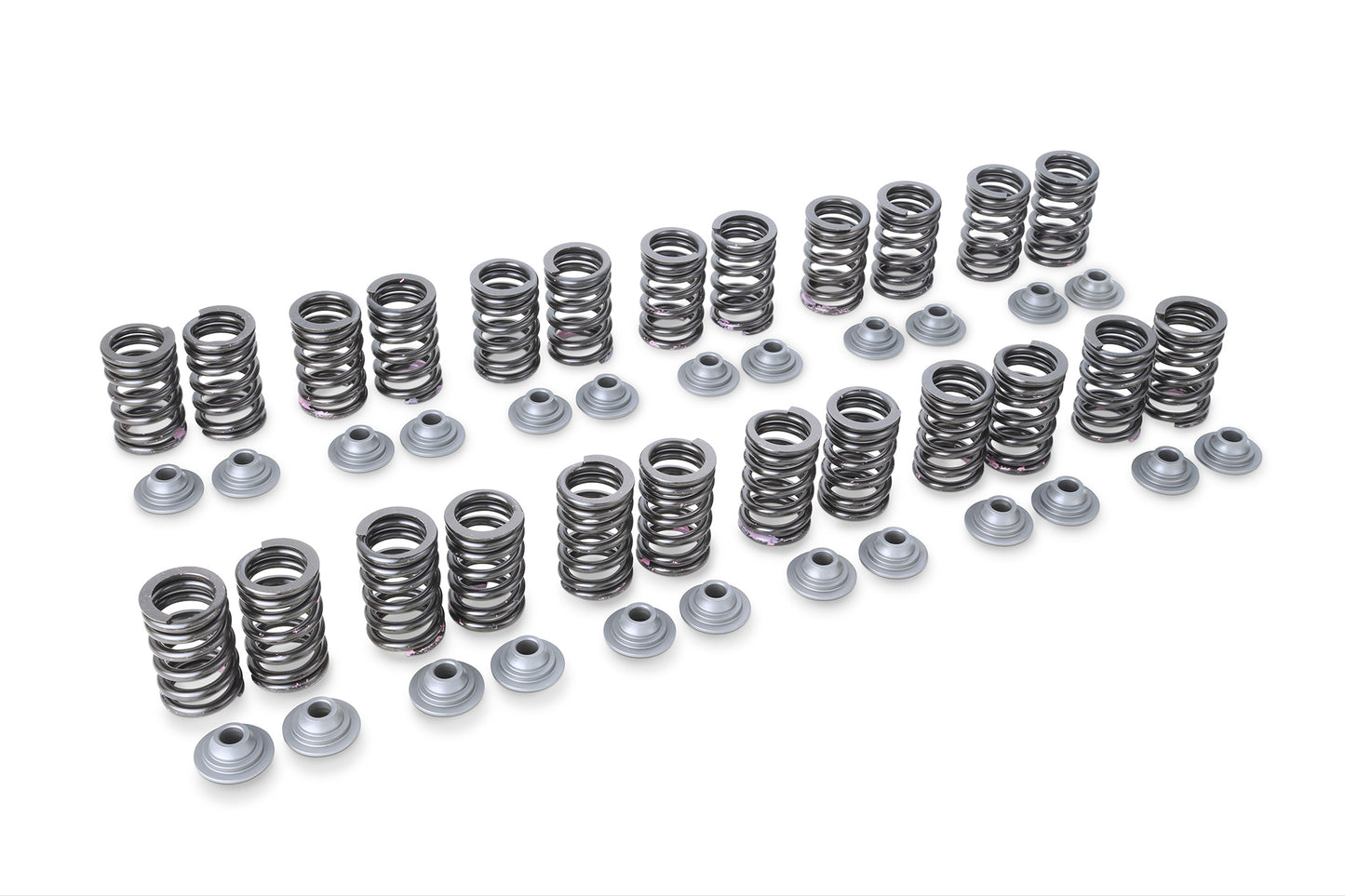

NOTE: first image is of Type A, second image is of Type B with the retainers.
|
APPLICATION
|
TYPE
|
COMPATIBLE
LIFT （mm） |
PART NO.
|
MSRP
|
NOTES
|
|
RB26DETT
|
A
|
~10.85
|
TA304A-NS05A
|
$450.00
|
|
|
B
|
~11.50
|
TA304A-NS05B
|
$690.00
|
* With Special Retainers
|
Spec
|
DIA
METER |
SET
LENGTH (mm) |
LIFT
LENGTH (mm) |
COMPATIBLE LIFT(mm)
|
SET
LOAD (kgf) |
LIFT
LOAD (kgf) |
REV
LIMIT (Ref.) |
MATERIAL
|
PROCESS
|
COLOR
ID |
||
| RB26 | |||||||||||
| A Type |
ø3.9
|
37.7
|
27.2
|
10.85
|
24.0±7%
|
77.2±7%
|
8500
|
SWOSC-V
|
Nitride
|
White
|
|
| B Type |
ø4.2
|
40.2
|
29.0
|
11.50
|
24.0±7%
|
97.8±7%
|
9500
|
SWOSC-V
|
Nitride
|
Yellow
|
|
