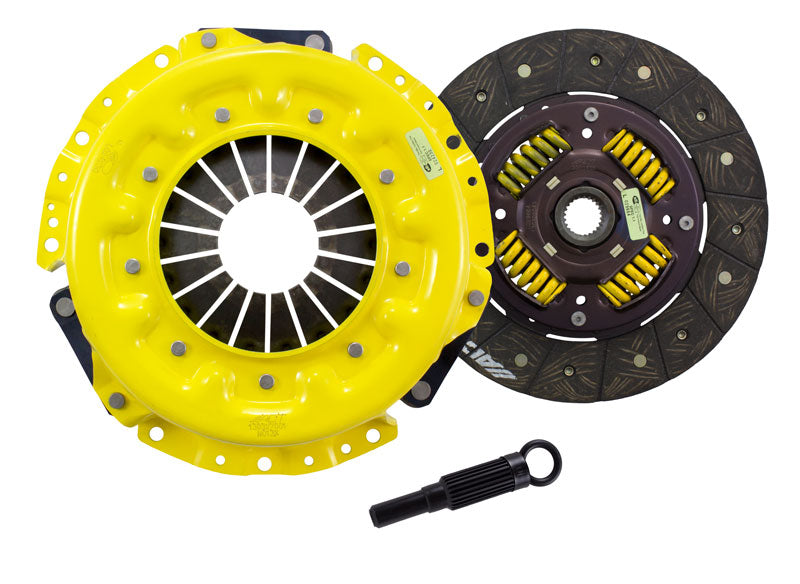

XT/Perf Street Sprung Kit, R32/R33 GTS-T

"Excellence in Performance", backed by the best one-year warranty in the industry!

NS3-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

NOTES

• Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle
• Longer friction life, extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended for street and race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

SPECIFICATIONS

• Pressure Plate Type: Xtreme
• Clutch Disc Diameter: 9.4 IN
• Clutch Disc Diameter: 240 MM
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 IN
• Alignment Tool Included: Yes
• California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
• Product Weight (lbs.): 18.8
• Title: ACT XT/Perf Street Sprung Kit
• Torque Capacity (ft/lbs.): 490
• Torque Capacity Over OE: 74%
