ACT
XT/Race Rigid 4 Pad Kit, FC3S
XT/Race Rigid 4 Pad Kit, FC3S
"Excellence in Performance", backed by the best one-year warranty in the industry!

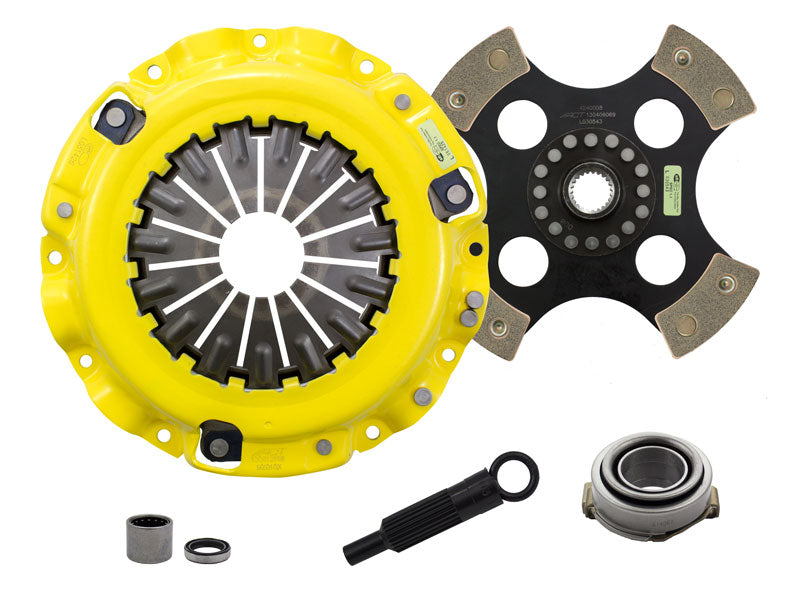

Z65-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
NOTES
- Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
- Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended for race use only
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
SPECIFICATIONS
- Pilot Bushing Included: Yes
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9.4 IN
- Clutch Disc Diameter: 240 MM
- Disc Material: Ceramic
- Input Spline Quantity: 23
- Input Shaft Diameter: 1 IN
- Alignment Tool Included: Yes
- California Proposition 65: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
- Part Fitment Requirement: Flywheel requires counterweight (not included).
- Product Weight (lbs.): 14.7
- Title: ACT XT/Race Rigid 4 Pad Kit
- Torque Capacity (ft/lbs.): 560
- Torque Capacity Over OE: 130%
